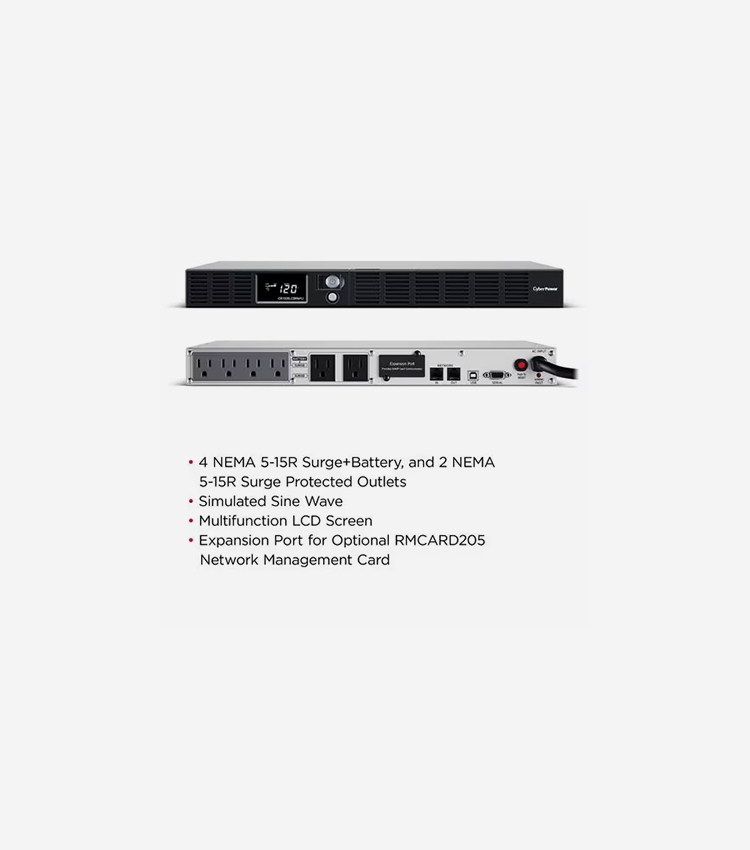

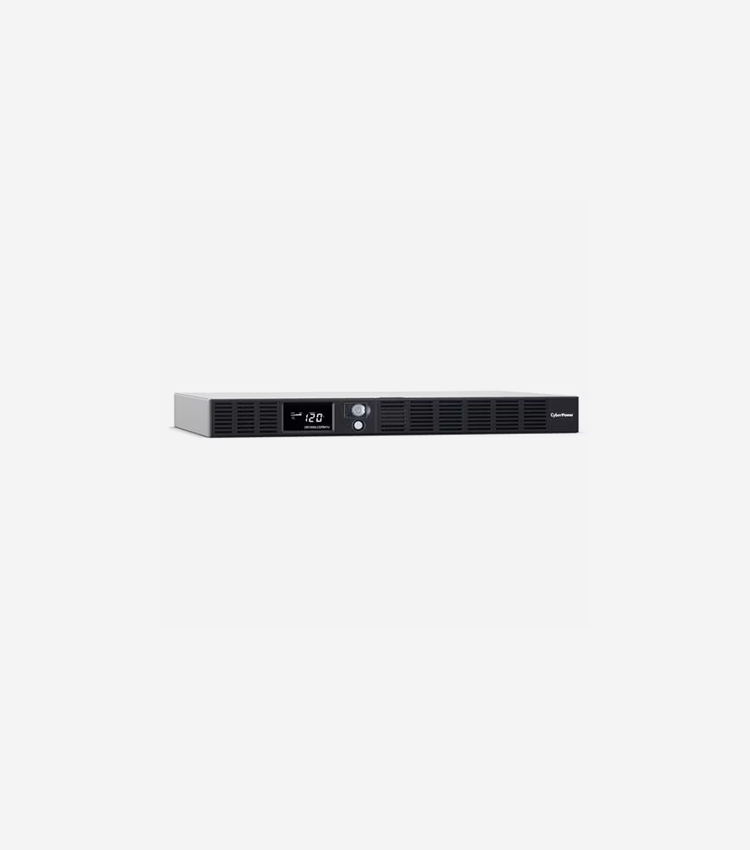

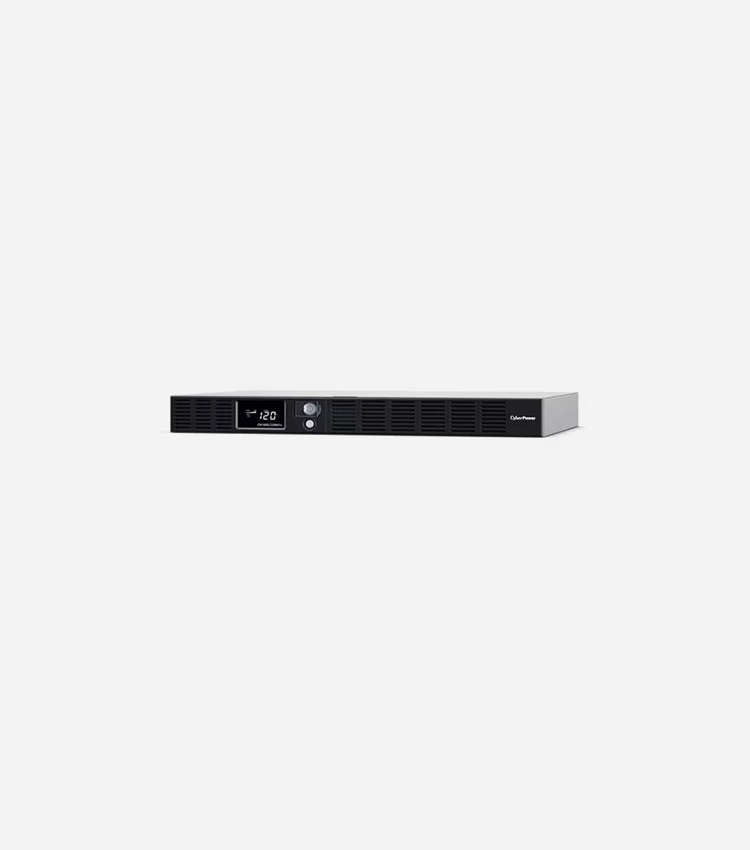

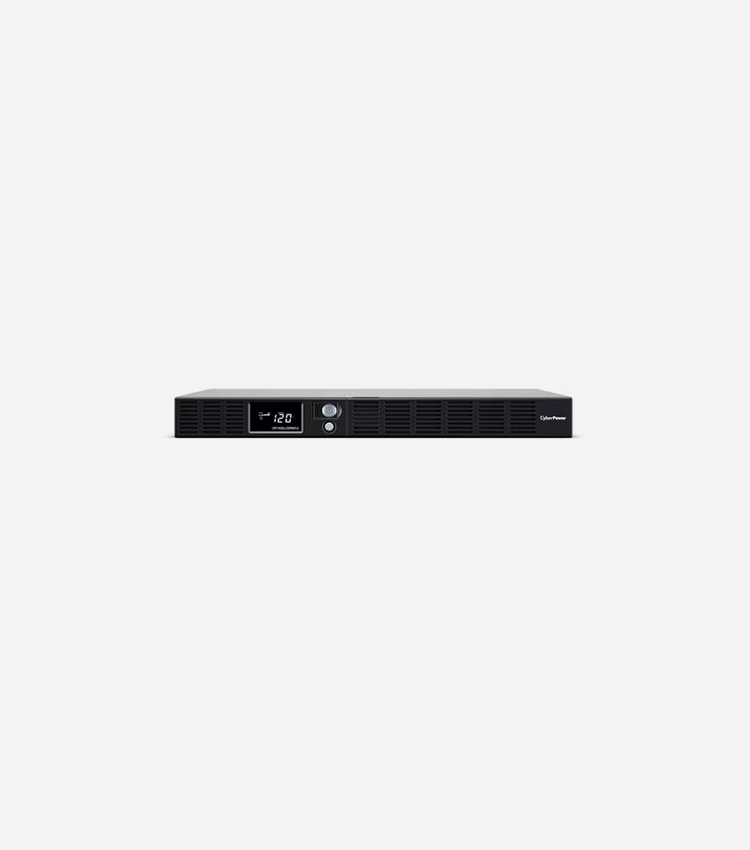

CyberPower OR1500LCDRM1U Smart App LCD UPS Systems - 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
$896.49
SKU: 60994J
MFG #: OR1500LCDRM1U
Guarantee Safe
Checkout
- Description
- Specifications
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- Capacity: 1500 VA / 900 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 6 × NEMA 5-15R
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
Overview
| Brand | CyberPower |
| Product Line | CyberPower Smart App LCD UPS Series |
| Model | OR1500LCDRM1U |
| Manufacturer | Cyber Power |
Network & Communication
| Remote Management Interface | RS-232, USB |
Connectivity
| Input Connectors | 1 |
| Interface Provided | 1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type B |
Expansion Slots
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
Power
| Frequency Provided | 60 hertz |
| Batteries Quantity | 4 |
| Input Voltage Range (Adjustable) | AC 88 - 144 V |
| Frequency Provided Margin | ± 1% |
| Voltage Provided Margin | ± 10% |
| Battery Capacity | 9 Ah |
| Provided Voltage | AC 120 volt |
| Battery Recharge Time | 8 Hours |
| Battery Technology | Lead acid |
| Battery Voltage | 6 volt |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Emergency Power Off | Audible alarm, Automatic Voltage Regulation (AVR), GreenPower UPS Technology, LCD display |
| Frequency | 57 - 63 hertz |
| Input Connector Type | Power NEMA 5-15P |
| Input Voltage Range | AC 90 - 140 V |
| Load Type | At full load |
| Max Run Time | 11 min at half load, 2 min at full load |
| Output Connector Quantity | 6 |
| Output Connector Type | 6 x power NEMA 5-15R |
| Power Capacity | 1500 volt ampere per kilogram |

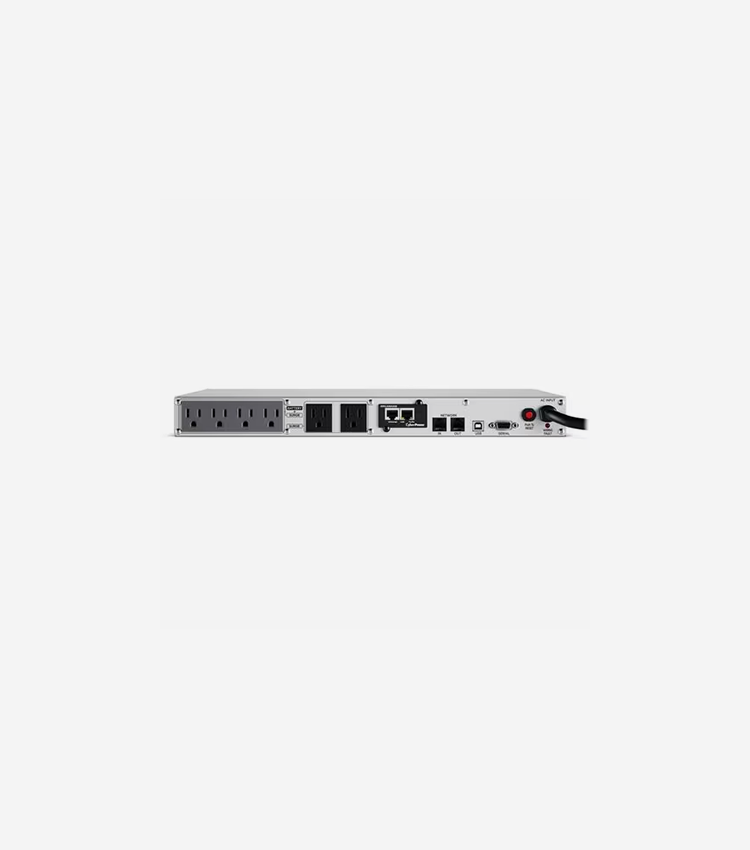

| Power Output Connectors Details | 2 x power NEMA 5-15R (surge), 4 x power NEMA 5-15R (UPS and surge) |
| Power Provided | 900 watt |
| Required Voltage | AC 120 volt |
| Surge Suppression | Yes |
| Switching Capacity | 8 millisecond |
| UPS Technology | Line interactive |
| Waveform Type | Stepped approximation to a sinewave |
| Battery Run Time (Up To) | 2 minute (time unit) |
Software
| Software Type | PowerPanel Business Edition |
Technical Information
| Form Factor (Power Device) | Rack-mountable |
| Max Operating Temperature | 40 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| Operating Humidity | 0 - 95% (non-condensing) |
| Protection Type | Circuit breaker |
Product Information
| Packaged Quantity | 1 |
| Rack Mounting Kit | Included |
| Product Type | UPS |
| Subcategory | UPS |
Included Items
| Cables | Power cable - integrated - 3 m, USB cable - external |
Dimensions & Weight
| Height | 4.45 centimetre |
| Height (Rack Units) | 1 |
| Weight | 14.97 kilogram |
| Width | 43.31 centimetre |
| Depth | 38.86 centimetre |
Physical Characteristics
| Color Category | Black |
Certifications & Listings
| Energy Star | Yes |
| Compliant Standards | cUL 107.1, FCC Class B certified, RoHS, UL 1778 |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - 3 years |
| Equipment Protection Value | 300000 US Dollars |
| Limited Warranty | 3 Year |
Energy & Performance
| Surge Energy Rating | 1150 joules |
