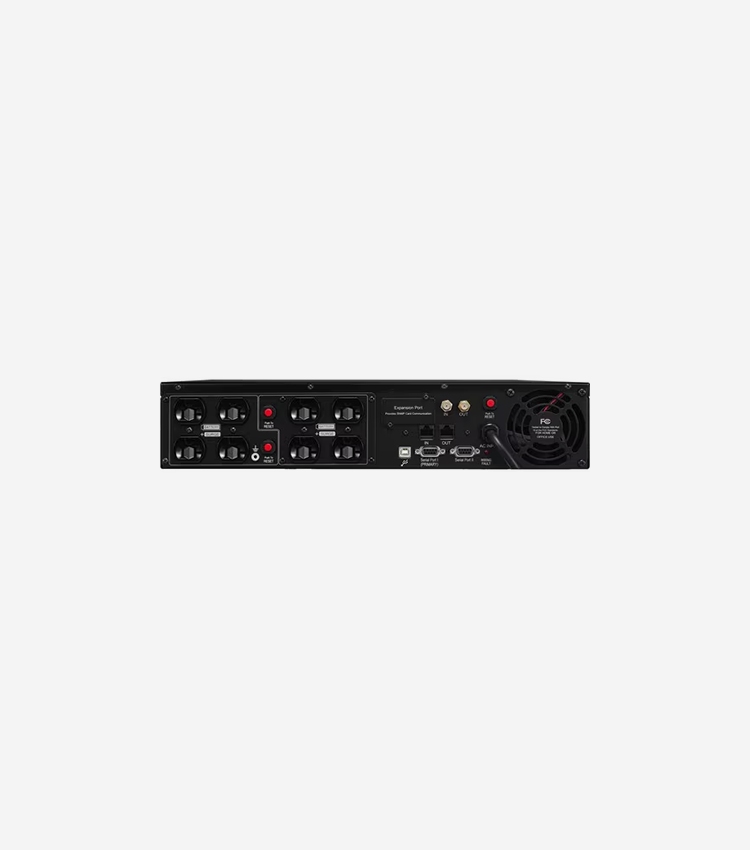

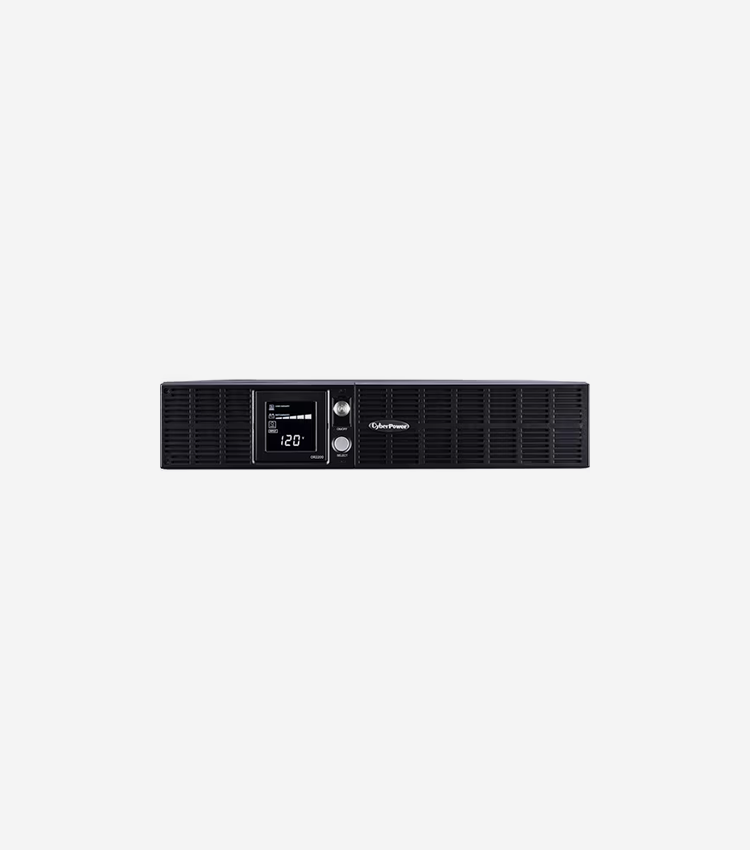

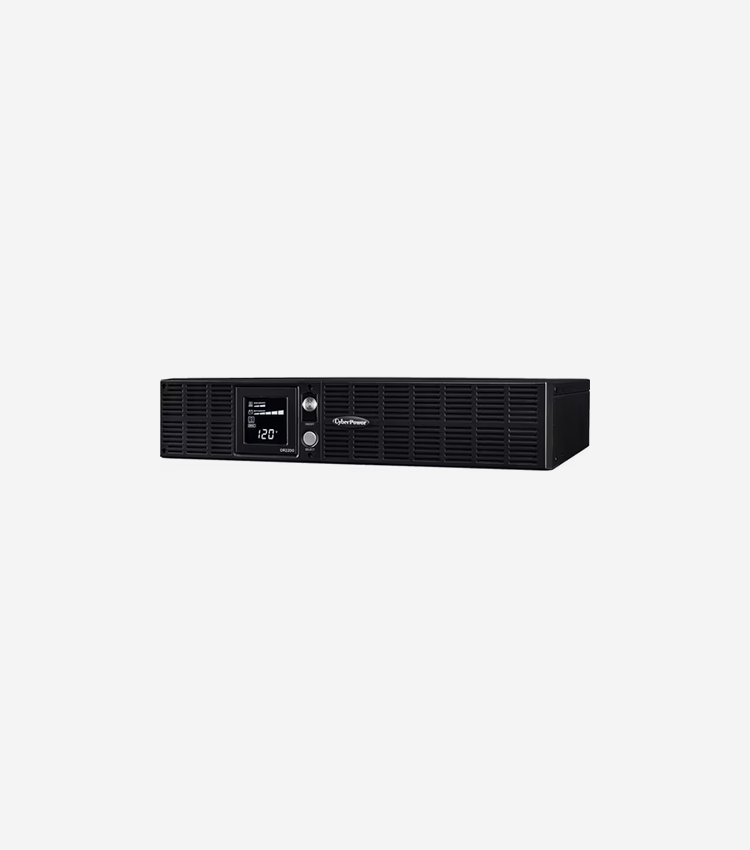

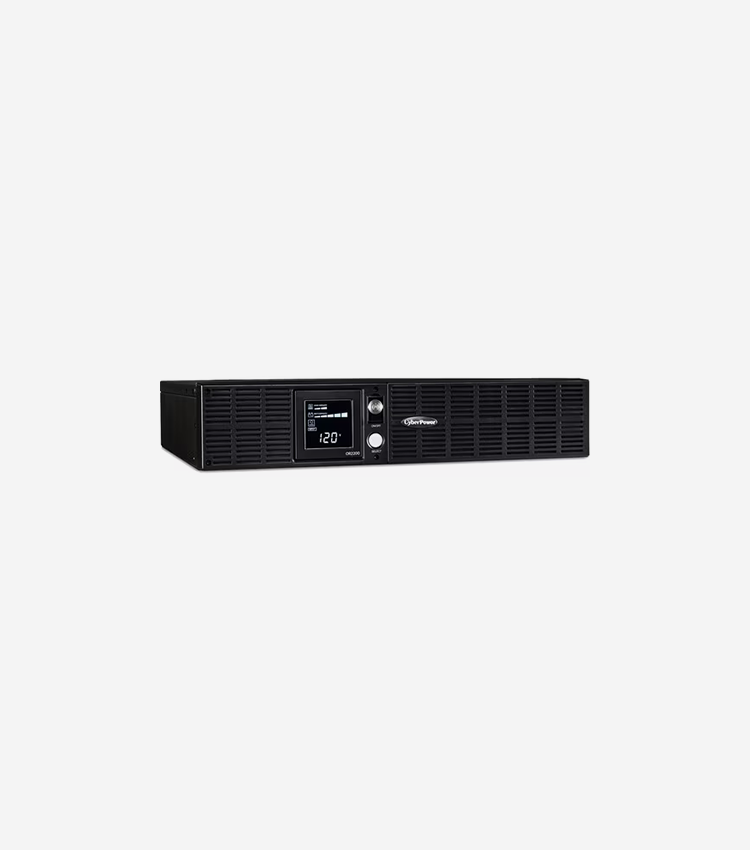

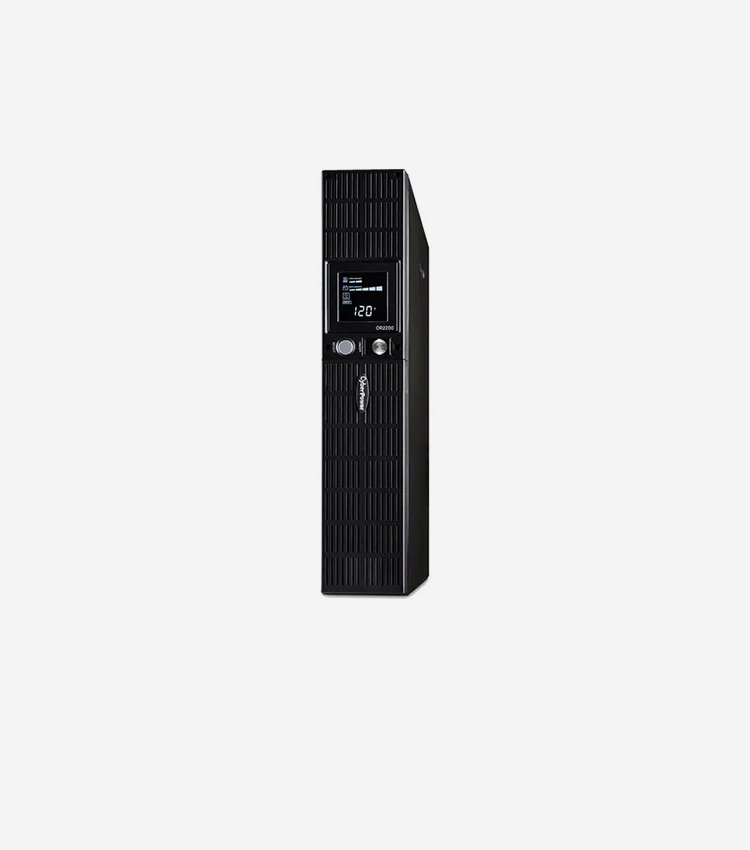

CyberPower OR2200LCDRT2U Smart App LCD UPS Systems - 120 VAC, NEMA 5-20P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty
$974.60
SKU: 11992W
MFG #: OR2200LCDRT2U
Guarantee Safe
Checkout
- Description
- Specifications
A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App LCD OR2200LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for office servers, corporate and department networks, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200LCDRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- Capacity: 2000 VA / 1320 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-20P (right angle), 10 ft. cord
- Outlet types: 8 × NEMA 5-20R
- Communication: USB, Serial, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
Overview
| Brand | CyberPower |
| Product Line | CyberPower Smart App Intelligent LCD |
| Model | OR2200LCDRT2U |
| Manufacturer | Cyber Power |
Network & Communication
| Remote Management Interface | RS-232, USB |
Connectivity
| Input Connectors | 1 |
| Interface Provided | 1 x management (USB) - 4 pin USB Type B, 2 x management (RS-232) - 9 pin D-Sub (DB-9) |
Power
| Lead Acid Battery Features | Sealed |
| Frequency Provided | 60 hertz |
| Batteries Quantity | 4 |
| Battery Capacity | 9 Ah |
| Voltage Provided Margin | ± 10% |
| Provided Voltage | AC 120 volt |
| Battery Recharge Time | 8 Hours |
| Battery Technology | Lead acid |
| Battery Voltage | 12 volt |
| Dataline Surge Protection | Coaxial - 1 input line / 1 output line, Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Emergency Power Off | Audible alarm, Automatic Voltage Regulation (AVR), Current meter, GreenPower UPS Technology, LCD display, Overload protection |
| Frequency | 47 - 63 hertz |
| Input Connector Type | Power NEMA 5-20 |
| Load Type | At full load |
| Max Run Time | 13 min at half load, 5 min at full load |
| Output Connector Quantity | 8 |
| Power Capacity | 2000 volt ampere per kilogram |
| Power Output Connectors Details | 8 x power NEMA 5-20 (UPS and surge) |
| Power Provided | 1320 watt |
| Required Voltage | AC 90-140 volt |
| Surge Suppression | Yes |
| Switching Capacity | 10 millisecond |
| UPS Technology | Line interactive |
| Waveform Type | Sine Wave |
| Battery Run Time (Up To) | 5 minute (time unit) |
Software
| Software Type | PowerPanel Business Edition |
Technical Information
| Form Factor (Power Device) | Rack-mountable / external |
| Operating System Required | Microsoft Windows 2000, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Vista / XP / 7 / 8 (64-bit versions) |
| Max Operating Temperature | 40 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| Operating Humidity | 0 - 95% (non-condensing) |
| Protection Type | Circuit breaker |
Product Information
| Packaged Quantity | 1 |
| Product Type | UPS |
| Subcategory | UPS |
Included Items
| Cables | Phone cable, Power cable 3.05 m, Serial cable, USB cable |
Dimensions & Weight
| Height | 8.89 centimetre |
| Height (Rack Units) | 2 |
| Weight | 23.9 kilogram |
| Width | 43.8 centimetre |
| Depth | 40 centimetre |
Physical Characteristics
| Color Category | Black |
Certifications & Listings
| Compliant Standards | CSA C22.2 No. 107.1, cUL, DOC-B, FCC, RoHS, UL 1778 |
| Energy Star | Yes |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Equipment Protection Value | 300000 US Dollars |
| Service & Support Details | Limited warranty - 3 years |
| Limited Warranty | 3 Year |
Energy & Performance
| Surge Energy Rating | 1840 joules |
