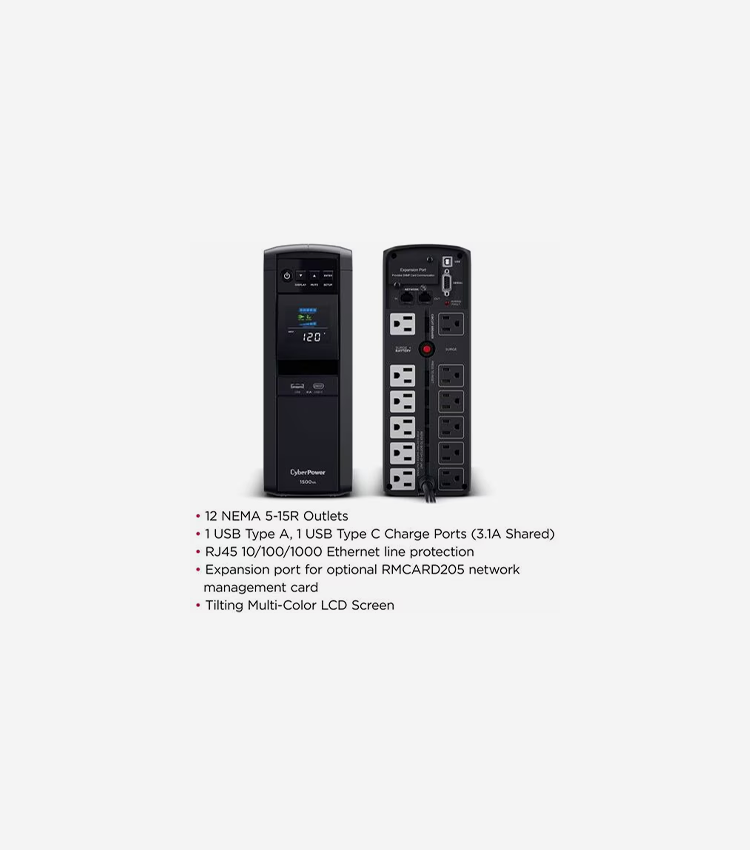

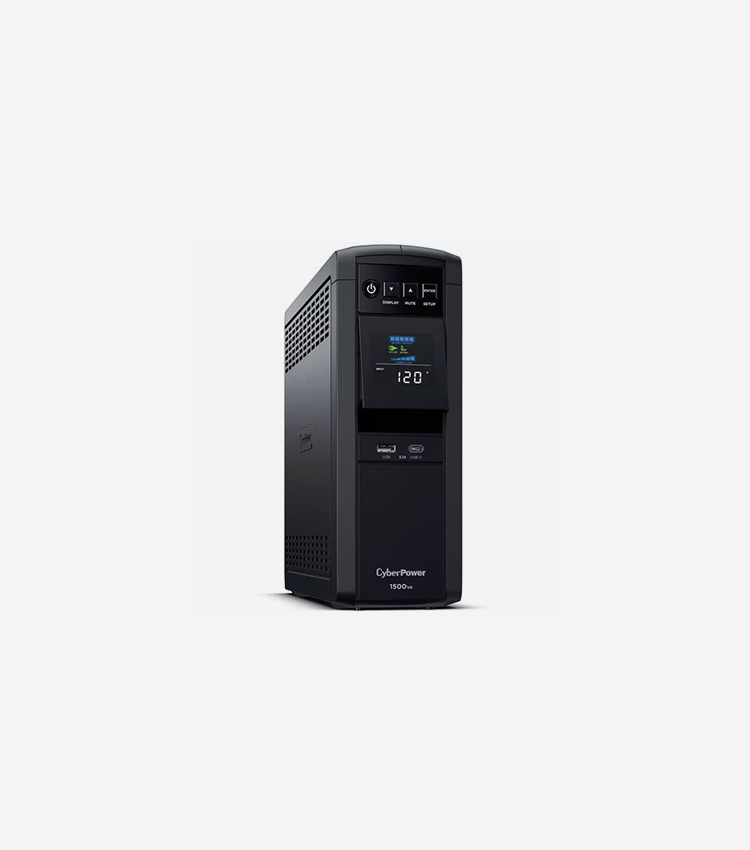

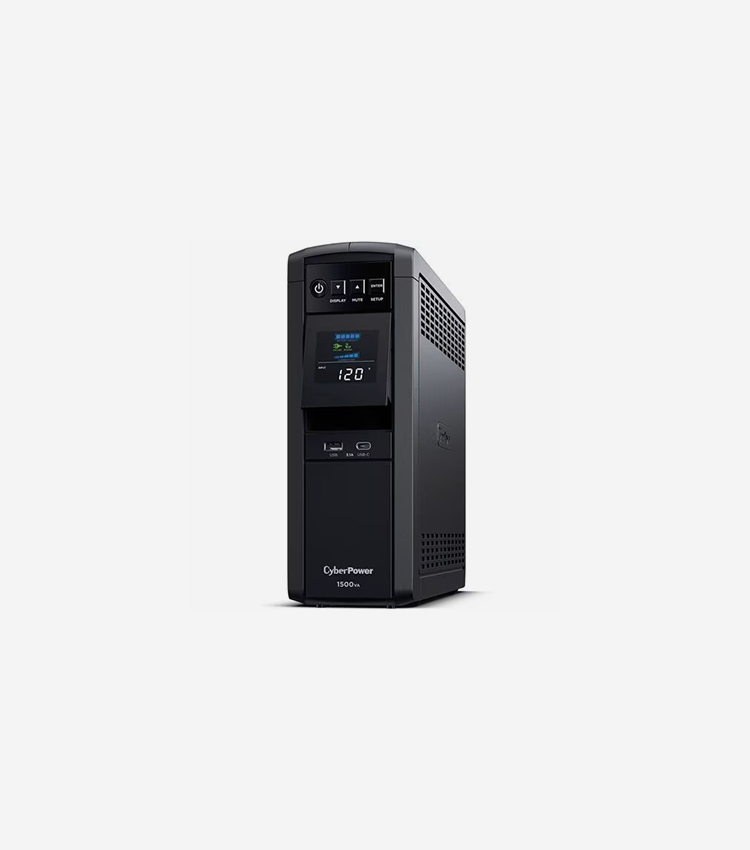

CyberPower PFC Sinewave Series CP1500PFCLCD - UPS - 1000 Watt - 1500 VA
$353.67
SKU: 48283N
MFG #: CP1500PFCLCD
Guarantee Safe
Checkout
- Description
- Specifications
A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

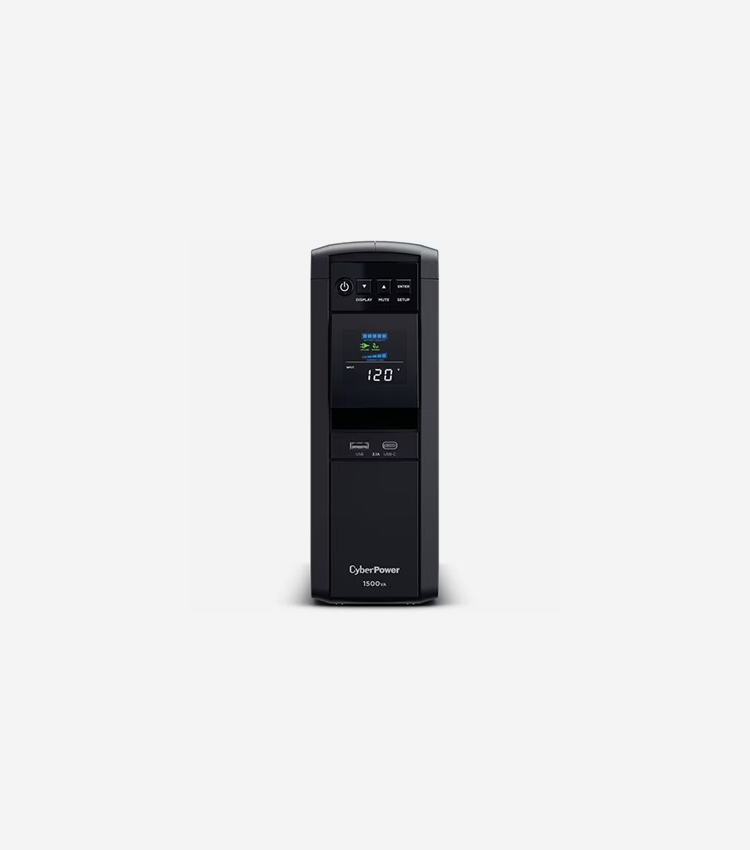

The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.
The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
- Capacity: 1500VA / 1000W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120Vac ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord

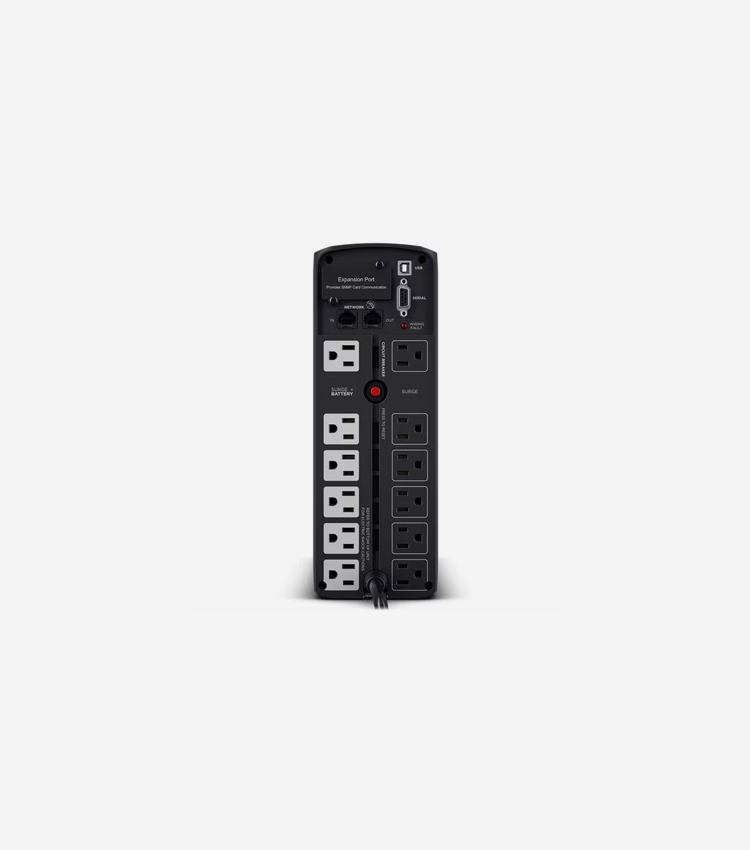

- Outlet types: 12 × NEMA 5-15R
- USB charge ports: 2
- Communication: USB, Relay, SNMP
- Data line protection: Network
- Management software: PowerPanel® Business
Overview
| Brand | CyberPower |
| Product Line | CyberPower PFC Sinewave Series |
| Model | CP1500PFCLCD |
| Manufacturer | Cyber Power |
Network & Communication
| Remote Management Interface | RS-232, USB |
Connectivity
| Input Connectors | 1 |
| Interface Provided | 1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type B |
Power
| Frequency Provided | 60 hertz |
| Batteries Quantity | 2 |
| Battery Capacity | 9 Ah |
| Voltage Provided Margin | ± 5% |
| Provided Voltage | AC 120 volt |
| Battery Recharge Time | 8 Hours |
| Battery Technology | Lead acid |
| Battery Voltage | 12 volt |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Emergency Power Off | Audible alarm, Automatic Voltage Regulation (AVR), GreenPower UPS Technology, LCD display |
| Frequency | 57 - 63 hertz |
| Input Connector Type | Power NEMA 5-15P |
| Input Voltage Range | AC 88 - 144 V |
| Load Type | At full load |
| Max Run Time | 10 min at half load, 2.5 min at full load |
| Output Connector Quantity | 12 |
| Output Connector Type | 12 x power NEMA 5-15R |
| Power Capacity | 1500 volt ampere per kilogram |
| Power Output Connectors Details | 1 x 24 pin USB-C, 1 x 4 pin USB Type A, 6 x power NEMA 5-15 (surge), 6 x power NEMA 5-15 (UPS and surge) |
| Power Provided | 1000 watt |
| Required Voltage | AC 120 volt |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Waveform Type | Sine Wave |
| Battery Run Time (Up To) | 2.5 minute (time unit) |
Software
| Software Type | PowerPanel Business Edition |
Technical Information
| Form Factor (Power Device) | External |
| Max Operating Temperature | 40 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| Operating Humidity | 0 - 95% (non-condensing) |
| Protection Type | Circuit breaker |
Product Information
| Packaged Quantity | 1 |
| Product Type | UPS |
| Subcategory | UPS |
Included Items
| Cables | Power cable - integrated - 1.52 m |
Dimensions & Weight
| Height | 27.94 centimetre |
| Weight | 11.29 kilogram |
| Width | 9.91 centimetre |
| Depth | 35.56 centimetre |
Physical Characteristics
| Color Category | Black |
| Color | Black |
Certifications & Listings
| Energy Star | Yes |
| Compliant Standards | cUL, FCC Class B certified, RoHS, UL 1778 |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - 3 years |
| Equipment Protection Value | 500000 US Dollars |
| Limited Warranty | 3 Year |
Energy & Performance
| Surge Energy Rating | 1445 joules |
