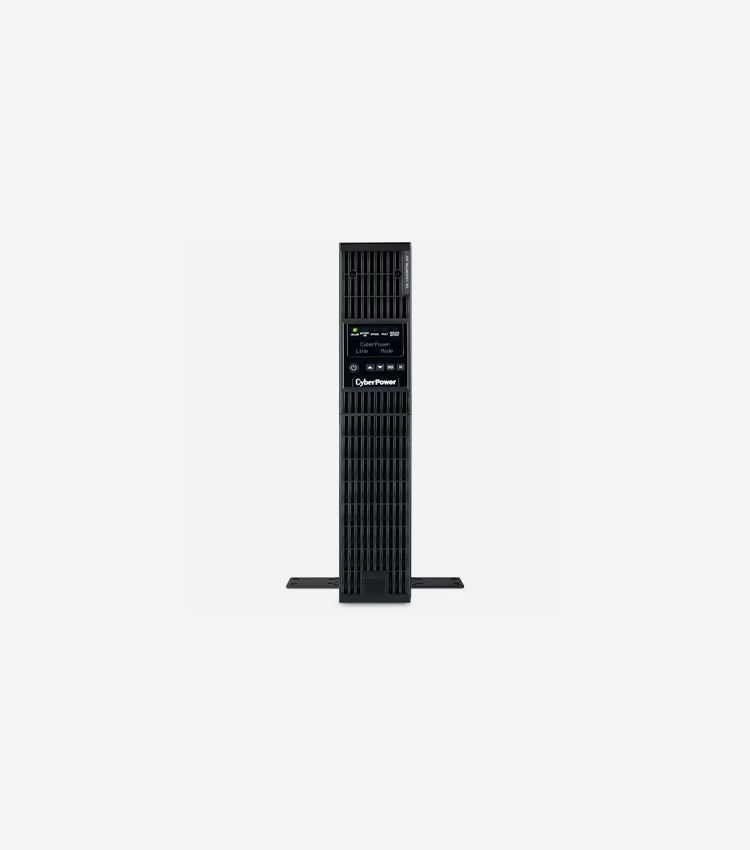

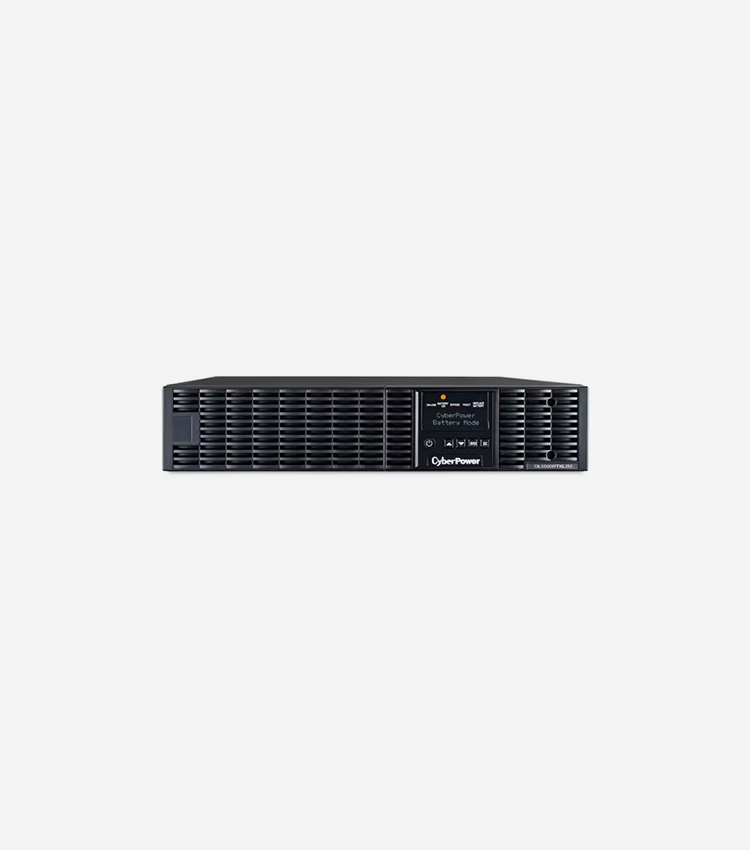

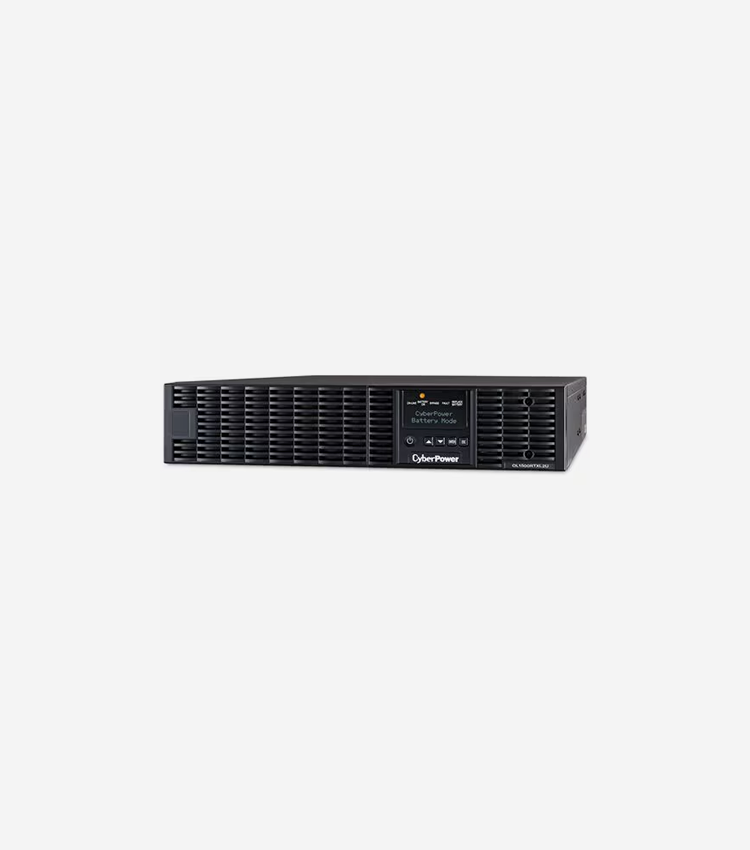

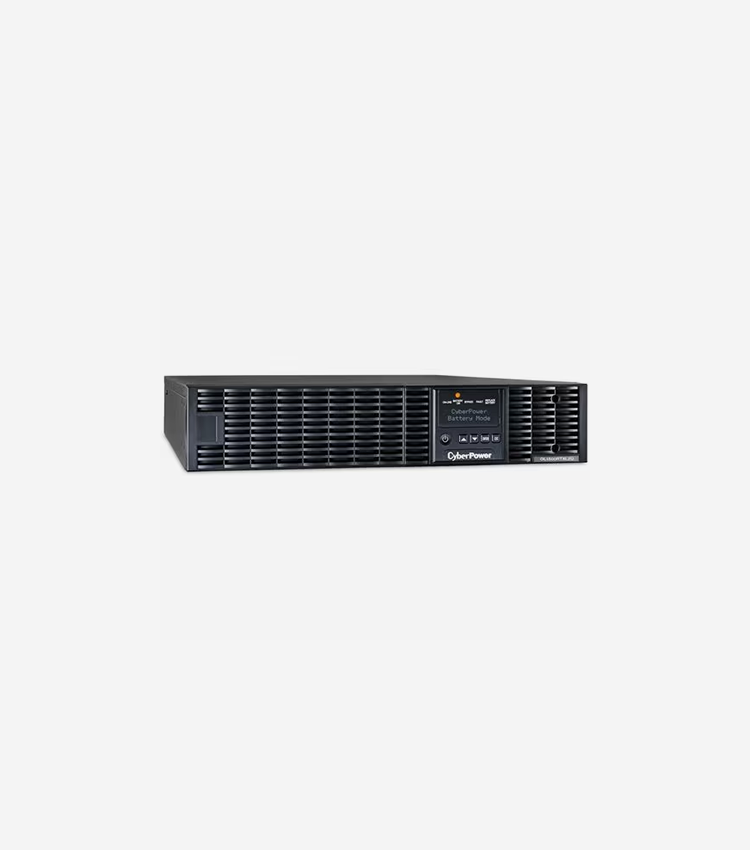

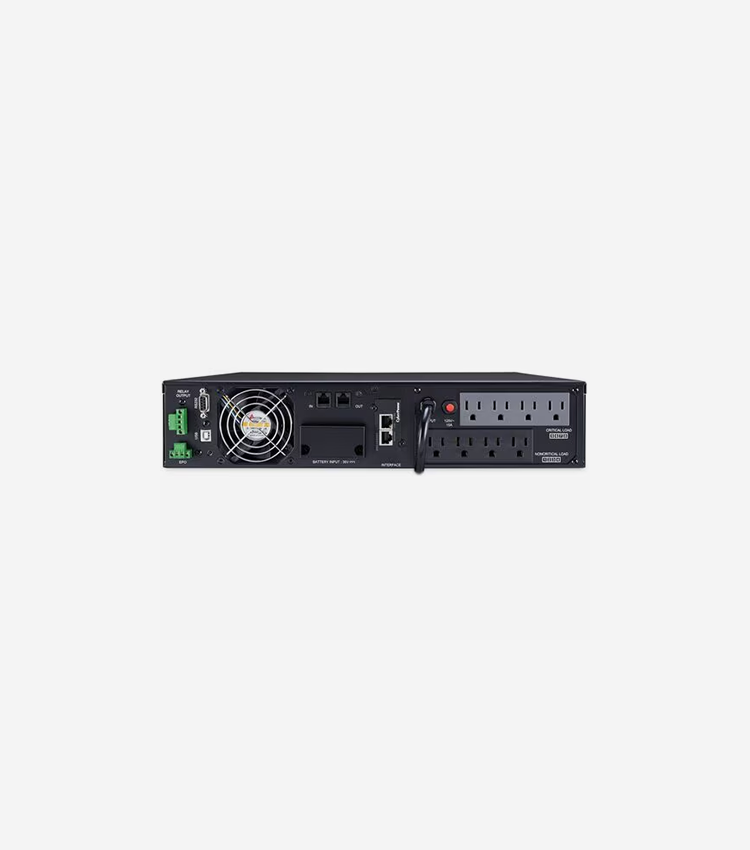

CyberPower Smart App Online OL1500RTXL2UN - UPS - 1350 Watt - 1500 VA
$2,094.79
SKU: 2131CE
MFG #: OL1500RTXL2UN
Guarantee Safe
Checkout
- Description
- Specifications
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1500RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
- Capacity: 1500 VA / 1350 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
Overview
| Brand | CyberPower |
| Product Line | CyberPower Smart App Online |
| Model | OL1500RTXL2UN |
| Manufacturer | Cyber Power |
Network & Communication
| Remote Management Interface | RS-232, USB |
Connectivity
| Input Connectors | 1 |
| Interface Provided | 1 x EPO (emergency power off), 1 x serial - 9 pin D-Sub (DB-9), 1 x USB - 4 pin USB Type B |
Power
| Batteries Quantity | 3 |
| Battery Capacity | 9 Ah |
| Battery Recharge Time | 4 Hours |
| Battery Technology | Lead acid |
| Battery Voltage | 12 volt |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line, Phone line - RJ-11 - 1 input line / 1 output line |
| Emergency Power Off | Audible alarm, Hot-swappable batteries, Internal bypass, LCD display, Overload protection |
| Frequency | 40 - 70 hertz |
| Input Connector Type | Power NEMA 5-15P |
| Input Voltage Range | AC 60 - 150 V |
| Load Type | At full load |
| Max Run Time | 11 min at half load, 3 min at full load |
| Output Connector Quantity | 8 |
| Output Connector Type | Power NEMA 5-15 |
| Power Capacity | 1500 volt ampere per kilogram |
| Power Output Connectors Details | 8 x power NEMA 5-15 |
| Power Provided | 1350 watt |
| Required Voltage | AC 120 volt |
| Surge Suppression | Yes |
| Switching Capacity | 0 millisecond |
| UPS Technology | On-line |
| Waveform Type | Sine Wave |
| Battery Run Time (Up To) | 3 minute (time unit) |
Software
| Software Type | PowerPanel Business Edition |
Technical Information
| Form Factor (Power Device) | Rack-mountable / external |
Product Information
| Packaged Quantity | 1 |
| Product Type | UPS |
| Subcategory | UPS |
Included Items
| Cables | Serial cable - external, USB cable - external |
Dimensions & Weight
| Height | 8.8 centimetre |
| Height (Rack Units) | 2 |
| Weight | 18 kilogram |
| Width | 43.3 centimetre |
| Depth | 43 centimetre |
Physical Characteristics
| Color Category | Black |
Certifications & Listings
| Compliant Standards | RoHS |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - 3 years |
| Limited Warranty | 3 Year |
Energy & Performance
| Surge Energy Rating | 1335 joules |
