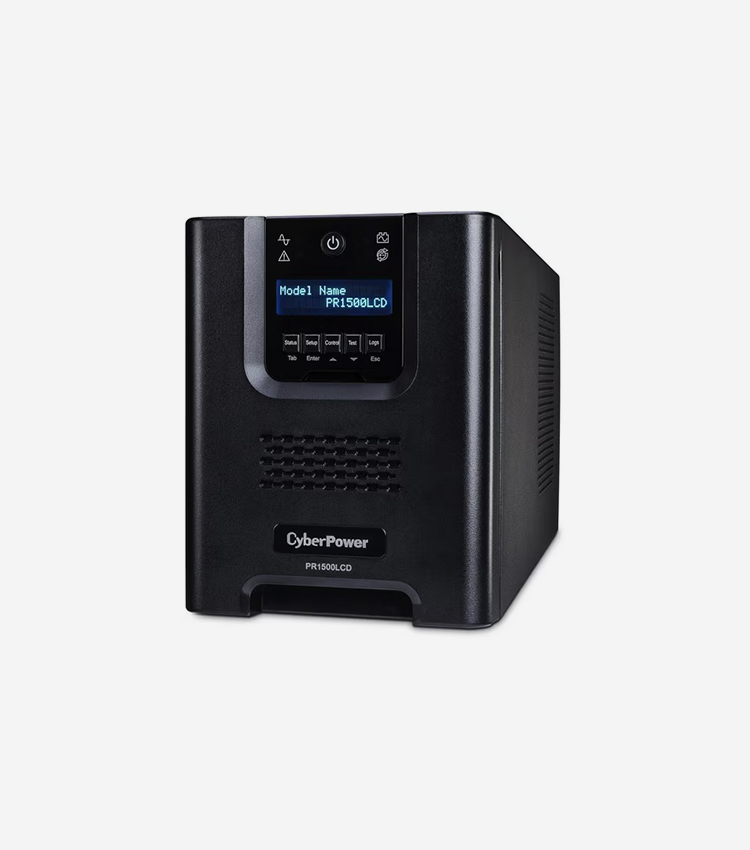

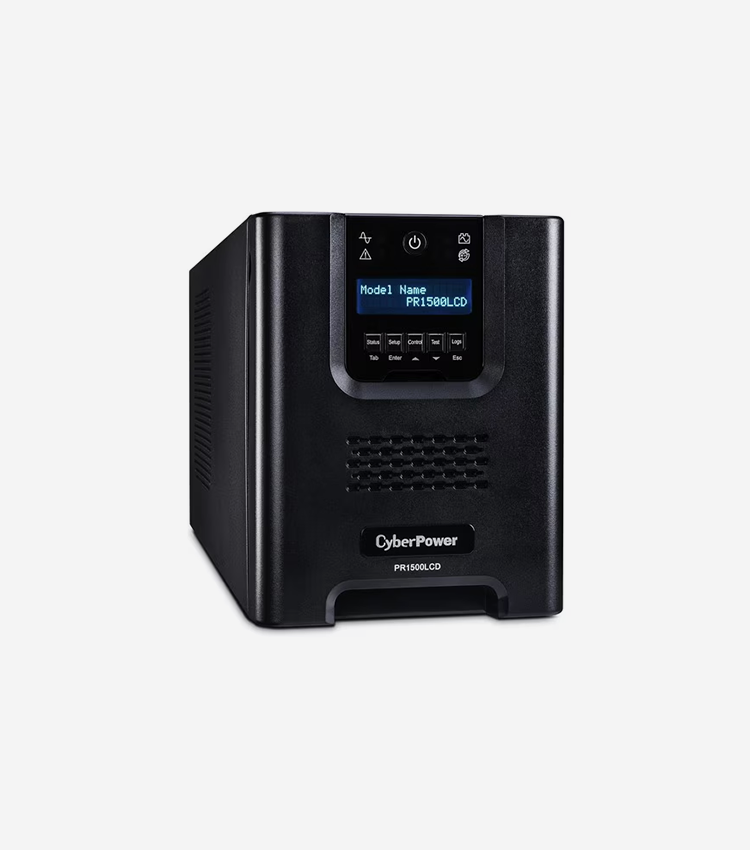

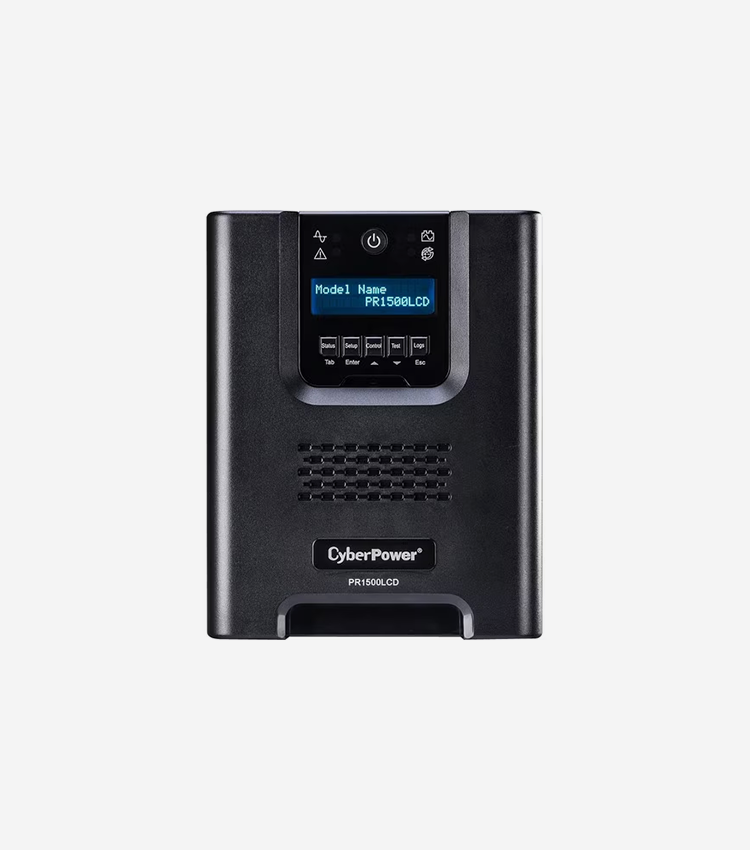

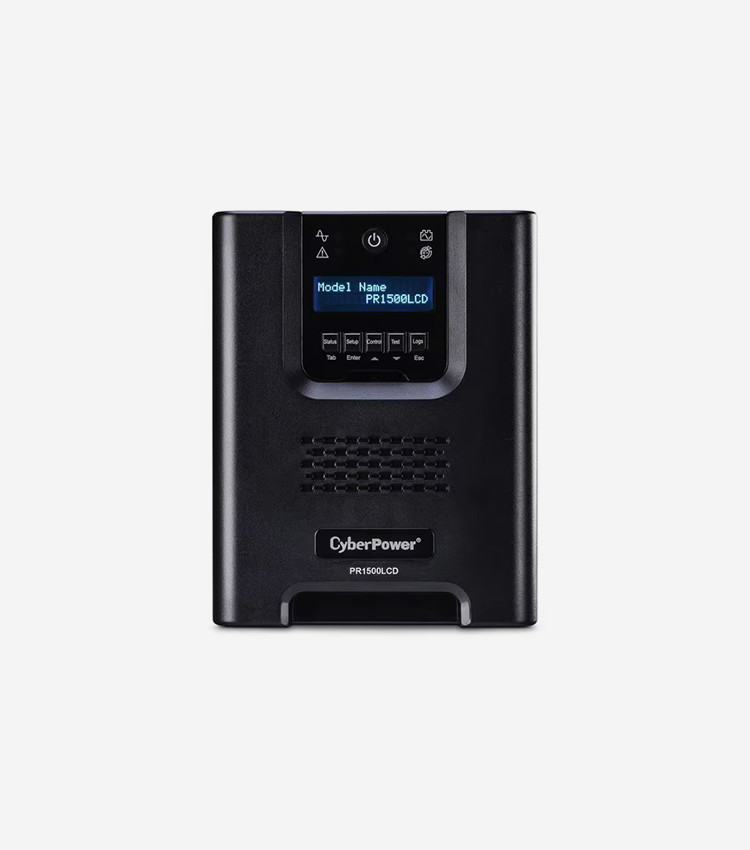

CyberPower Smart App Sinewave PR1500LCD 1500VA Mini-Tower UPS - Mini-tower - AVR - 8 Hour Recharge - 4.70 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-15R - Serial Port
$1,166.15
SKU: 70238Z
MFG #: PR1500LCDN
Guarantee Safe
Checkout
- Description
- Specifications
A mini-tower UPS with line interactive topology and a pre-installed SNMP card, the CyberPower Smart App Sinewave PR1500LCDN provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCDN uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser or network management system (NMS) comes installed. The PR1500LCDN comes with a three-year warranty and a $375,000 Connected Equipment Guarantee.
- Capacity: 1500 VA / 1500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: RMCARD205 included
- Warranty: 3 year
Overview
| Brand | CyberPower |
| Product Line | CyberPower Smart App Sinewave |
| Model | PR1500LCDN |
| Manufacturer | Cyber Power |
Network & Communication
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management | HTTP, SNMP |
Connectivity
| Input Connectors | 1 |

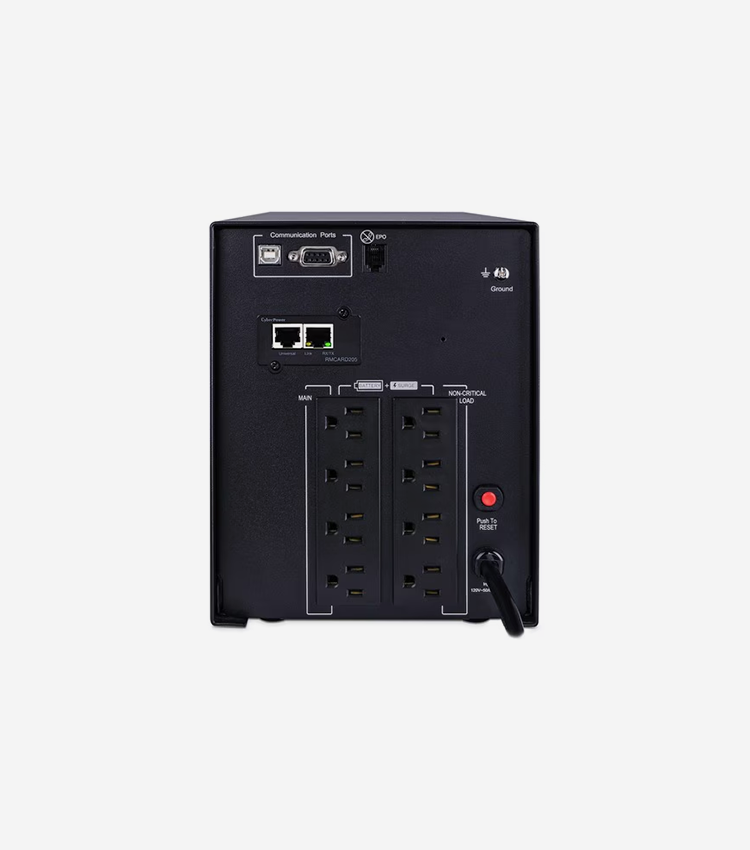

| Interface Provided | 1 x EPO (emergency power off), 1 x LAN - RJ-45, 1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type B |
Expansion Slots
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
Power
| Lead Acid Battery Features | Sealed |
| Frequency Provided | 50/60 hertz |
| Batteries Quantity | 2 |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Voltage Provided Margin | ± 5% |
| Battery Capacity | 17 Ah |
| Provided Voltage | AC 120 volt |
| Battery Recharge Time | 8 Hours |
| Battery Technology | Lead acid |
| Battery Voltage | 12 volt |
| Emergency Power Off | Audible alarm, Automatic Voltage Regulation (AVR), Emergency power off, GreenPower UPS Technology, Hot-swappable batteries, LCD display, LED indicators |
| Frequency | 47 - 63 hertz |
| Input Connector Type | Power NEMA 5-15 |
| Input Voltage Range | AC 102 - 131 V |
| Load Type | At full load |
| Max Run Time | 24 min at half load, 8 min at full load |
| Output Connector Quantity | 8 |
| Output Connector Type | Power NEMA 5-15 |
| Power Capacity | 1500 volt ampere per kilogram |
| Power Output Connectors Details | 8 x power NEMA 5-15 |
| Power Provided | 1500 watt |
| Required Voltage | AC 120 volt |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Waveform Type | Sine Wave |
| Battery Run Time (Up To) | 8 minute (time unit) |
Software
| Software Type | PowerPanel Business Edition |
Technical Information
| Form Factor (Power Device) | External |
| Max Operating Temperature | 40 degree Celsius |
| Sound Emission | 34.5 decibel |
| Min Operating Temperature | 0 degree Celsius |
| Operating Humidity | 0 - 95% (non-condensing) |
| Protection Type | Circuit breaker |
Product Information
| Packaged Quantity | 1 |
| Product Type | UPS |
| Subcategory | UPS |
Included Items
| Cables | EPO cable - external, Power cable - integrated - 1.83 m, Serial cable - external, USB cable - external |
Dimensions & Weight
| Height | 22.1 centimetre |
| Weight | 24.5 kilogram |
| Width | 17.02 centimetre |
| Depth | 43.18 centimetre |
Physical Characteristics
| Color Category | Black |
Certifications & Listings
| Compliant Standards | CSA C22.2 No. 107.3, FCC, RoHS, UL 1778 |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - 3 years |
| Equipment Protection Value | 375000 US Dollars |
| Limited Warranty | 3 Year |
Energy & Performance
| Surge Energy Rating | 1030 joules |
