CyberPower UPS Systems BP36V60ART2U Extended Battery Modules - Output: 36V/60A - 9000 mAh - 36 V DC - Lead Acid - User Replaceable - Hot Swappable - 4 Hour Recharge Time

$1,134.01

SKU: 62159S

MFG #: BP36V60ART2U

Quantity

- +

Availability: 9 units In Stock

Check Warehouse Availability

Add to cart

Guarantee Safe
Checkout

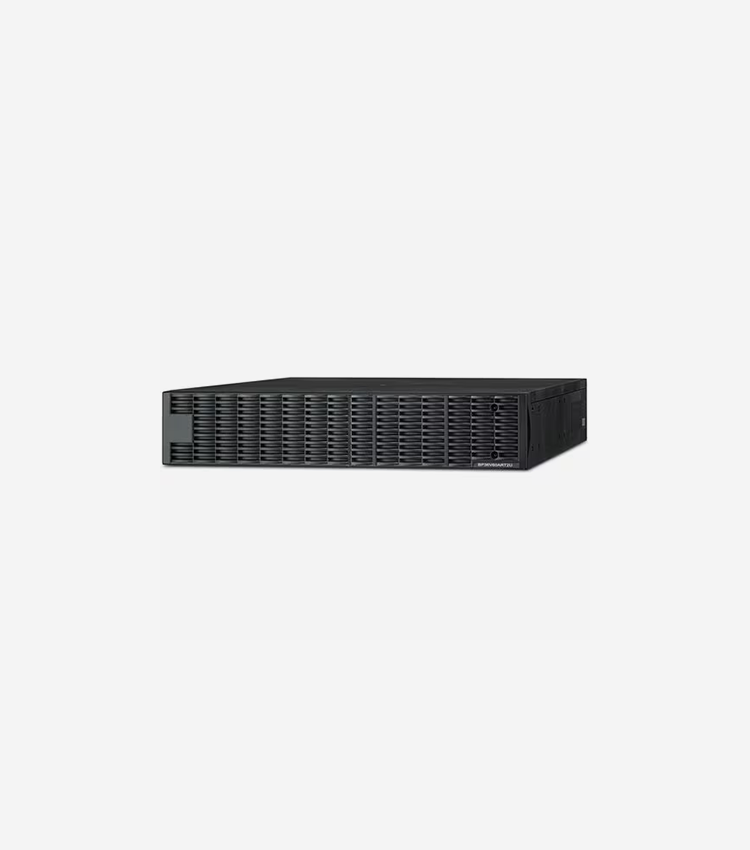

The CyberPower BP36V60ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U and OL1500RTXL2UN. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.

Up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy-chaining additional EBMs to a UPS system. The BP36V60ART2U typically has a UPS charging time of 4 hours (0-90%), regardless of whether one or ten EBMS are installed, and comes with a three-year warranty.

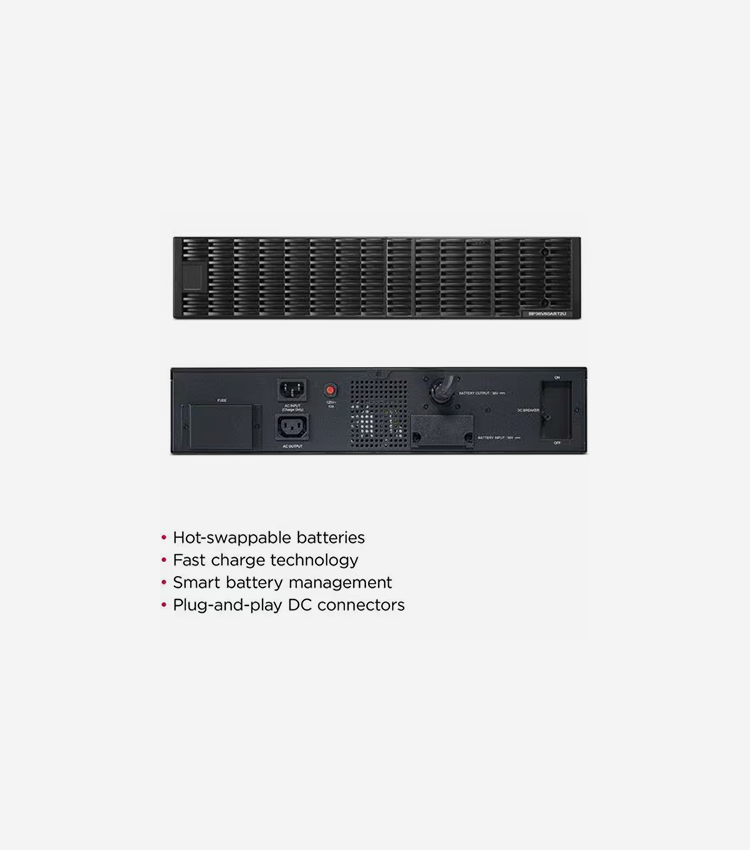

Extended Battery Module
Expands runtime and quickly restores full backup power with Fast Charge Technology.

Hot-Swappable Batteries
Can be replaced without powering down vital equipment.

Fast Charge Technology
Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.

Smart Battery Management
Uses a three-cycle charging mode that improves battery life and reduces generated heat.

Plug-and-Play DC Connectors
Allow for daisy-chaining additional EBMs to a UPS system.

Replaceable DC Fuses
Are located behind an easy-access panel.

Resettable AC Circuit Breaker
Resets the UPS swiftly in case of an overload.

Rack/Tower Configuration
Allows for horizontal rack or vertical tower installation.

Three-Year Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

What's In The Box

Extended Battery Module, User's manual, Registration card, Rackmount left rail, Rackmount right rail, Left hanging bracket, Right hanging bracket, IEC320 C14 to NEMA 5-15P Power cord, Rackmount ears (Stands) (2), Tie plate, M5X8L black pan head screws (8), M5X12L black pan head screws (12), M5X6L silver pan head screws (6), Plastic washers (8), Screw hole dust covers (10), Rubber feet (12)

Output: 36V/60A
Recharge time: 4 Hours (0-90% charged)
Battery type & quantity: 12V/9AH (6)
Weight: 50.6 lbs.
Form factor: Rack/Tower
Hot swappable: Yes
Fast Charge Technology: Yes
Warranty: 3 year

Overview

Brand	CyberPower
Product Line	CyberPower
Model	BP36V60ART2U
Manufacturer	Cyber Power

Power

Lead Acid Battery Features	Spill-proof
Battery Capacity (Ah)	9 Ah
Battery Chemistry	Lead Acid
Battery Recharge Time	5 Hours
Battery Voltage	12 volt

Technical Information

Form Factor (Power Device)	External
Max Operating Temperature	40 degree Celsius
Min Operating Temperature	0 degree Celsius
Operating Humidity	0 - 90% (non-condensing)

Product Information

Features	Hot-swappable
Rack Mounting Kit	Included
Packaged Quantity	1
Product Type	Battery enclosure
Subcategory	Cabinets, enclosures and chassis

Included Items

Batteries Included	6

Dimensions & Weight

Height	8.8 centimetre
Height (Rack Units)	2
Weight	22.9 kilogram
Width	43.3 centimetre
Depth	43 centimetre

Compatibility

Compatibility Specs	CyberPower Smart App Online OL1000RTXL2U

Certifications & Listings

Compliant Standards	CSA C22.2 No. 107.3, cUL, DOC, FCC Class A certified, ISO 9001, RoHS, UL 1778
ENERGY STAR Certified	No
EPEAT Compliant	No
TCO Certified	No
