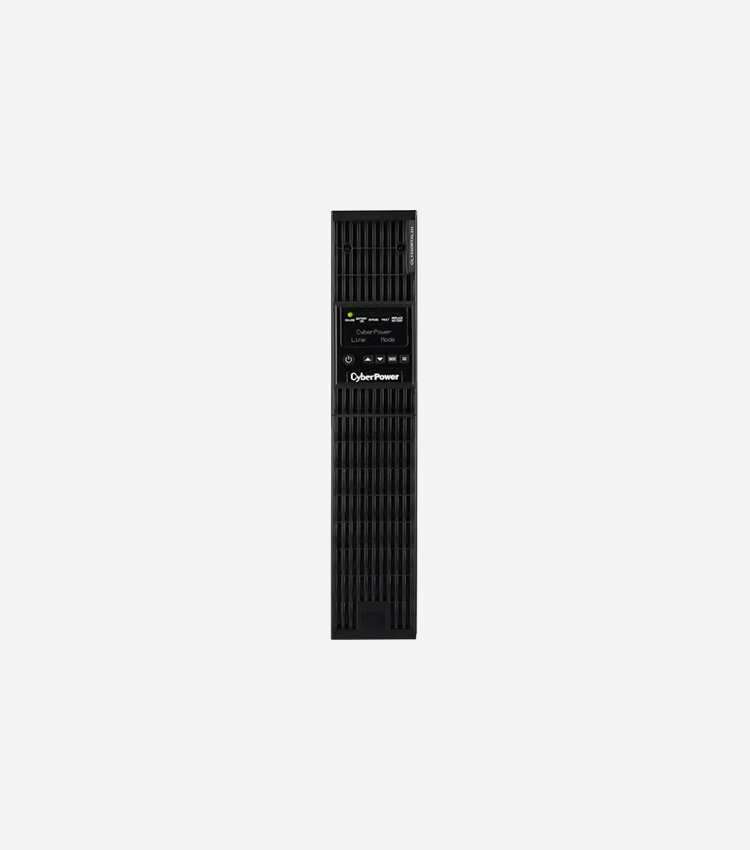

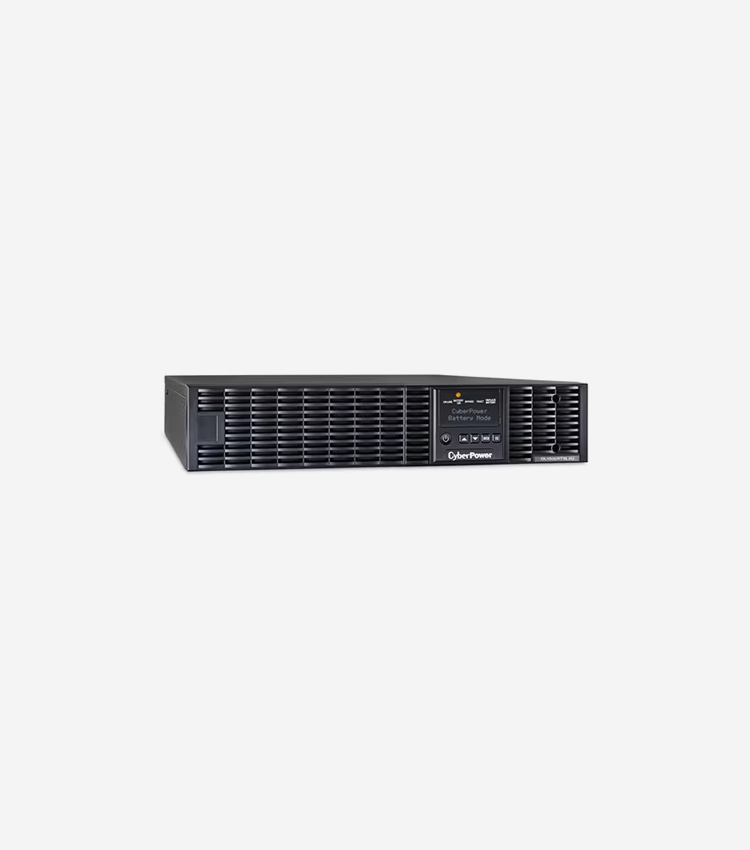

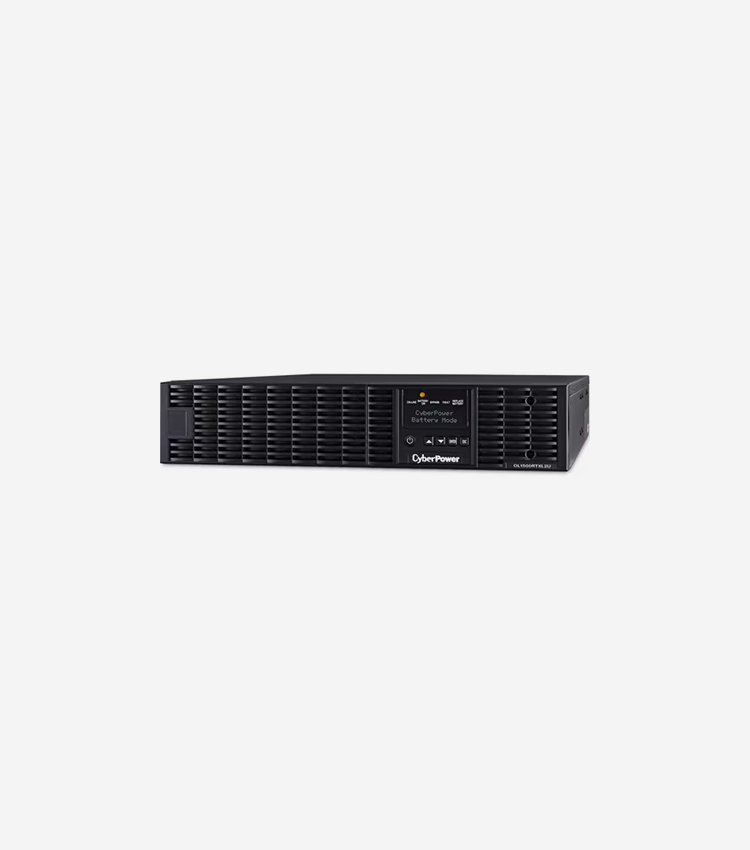

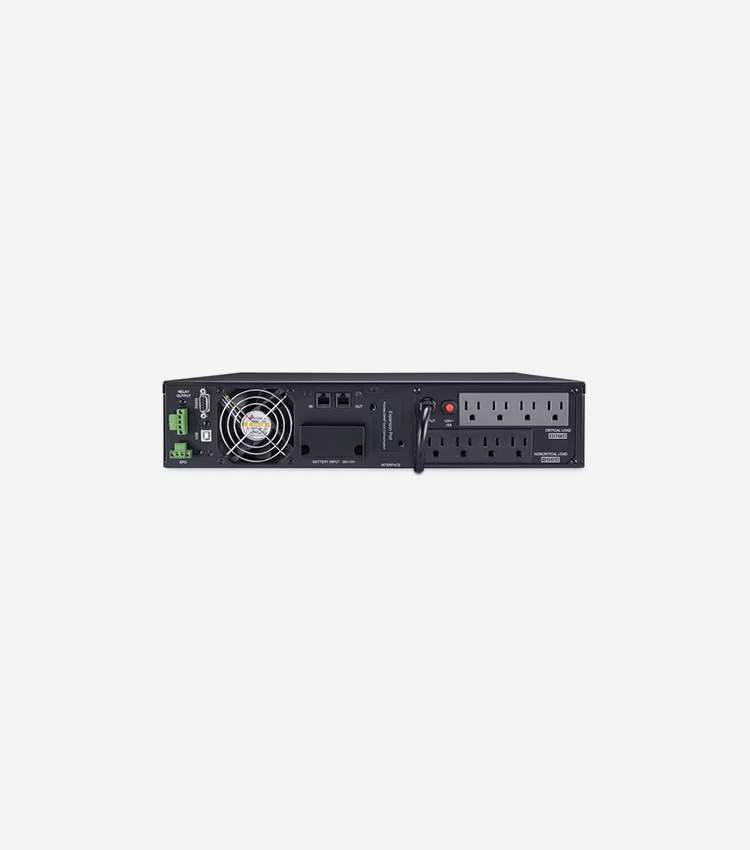

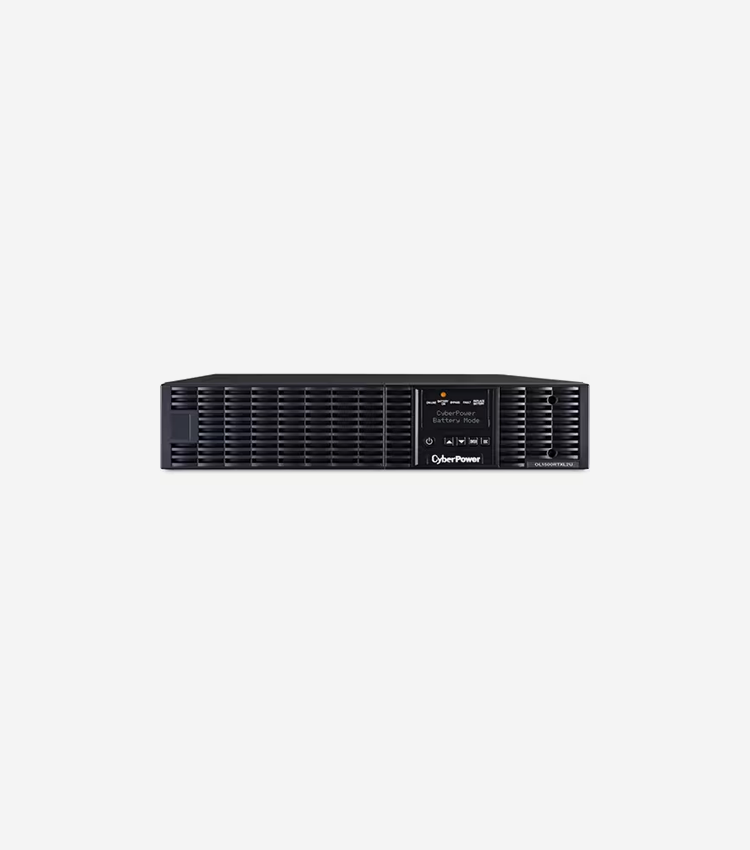

CyberPower UPS Systems OL1500RTXL2U Smart App Online - Capacity: 1500 VA / 1350 W - 2U Rack/Tower - 4 Hour Recharge - 3.40 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - 8 x NEMA 5-15R - Serial Port
$1,838.60
SKU: 79501S
MFG #: OL1500RTXL2U
Guarantee Safe
Checkout
- Description
- Specifications
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1500RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL1500RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
- Capacity: 1500 VA / 1350 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Monitoring & Management: USB, Serial, Network, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
Overview
| Brand | CyberPower |
| Product Line | CyberPower Smart App Online |
| Model | OL1500RTXL2U |
| Manufacturer | Cyber Power |
Network & Communication
| Remote Management Interface | RS-232, USB |
Connectivity
| Input Connectors | 1 |
| Interface Provided | 1 x EPO (emergency power off), 1 x management, 1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type B |
Expansion Slots
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
Power
| Frequency Provided | 50/60 hertz |
| Technology | Lead acid |
| Batteries Quantity | 3 |
| Voltage Provided Margin | ± 2% |
| Battery Capacity | 9 Ah |
| Provided Voltage | AC 100/110/115/120/125 volt |
| Battery Recharge Time | 4 Hours |
| Battery Technology | Lead acid |
| Battery Voltage | 12 volt |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Emergency Power Off | Audible alarm, Cold-start function, GreenPower UPS Technology, Hot-swappable batteries, Internal bypass, LCD display, Overload protection, Smart Battery Management (SMB) |
| Frequency | 40 - 70 hertz |
| Input Connector Type | Power NEMA 5-15 |
| Input Voltage Range | AC 60 - 150 V |
| Load Type | At full load |
| Max Run Time | 11 min at half load, 4 min at full load |
| Output Connector Quantity | 8 |
| Power Capacity | 1500 volt ampere per kilogram |
| Power Output Connectors Details | 8 x power NEMA 5-15 |
| Power Provided | 1.35 kilograms per millimetere |
| Required Voltage | AC 100-125 volt |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Waveform Type | Sine Wave |
| Battery Run Time (Up To) | 4 minute (time unit) |
Software
| Software Type | PowerPanel Business Edition |
Technical Information
| Form Factor (Power Device) | External |
| Operating System Required | Linux, Microsoft Windows 2000, Microsoft Windows 2003, Microsoft Windows 7, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits) |
| Max Operating Temperature | 40 degree Celsius |
| Sound Emission | 50 dBA |
| Min Operating Temperature | 0 degree Celsius |
| Operating Humidity | 0 - 90% (non-condensing) |
| Protection Type | Circuit breaker |
Product Information
| Packaged Quantity | 1 |
| Rack Mounting Kit | Included |
| Product Type | UPS |
| Subcategory | UPS |
Included Items
| Cables | Phone cable - external, Power cable 3 m, Serial cable - external, USB cable - external |
Dimensions & Weight
| Height | 8.8 centimetre |
| Height (Rack Units) | 2 |
| Weight | 18 kilogram |
| Width | 43.3 centimetre |
| Depth | 43 centimetre |
Certifications & Listings
| Compliant Standards | CSA C22.2 No. 107.3, FCC, RoHS, UL 1778 |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - 3 years |
| Equipment Protection Value | 400000 US Dollars |
| Limited Warranty | 3 Year |
