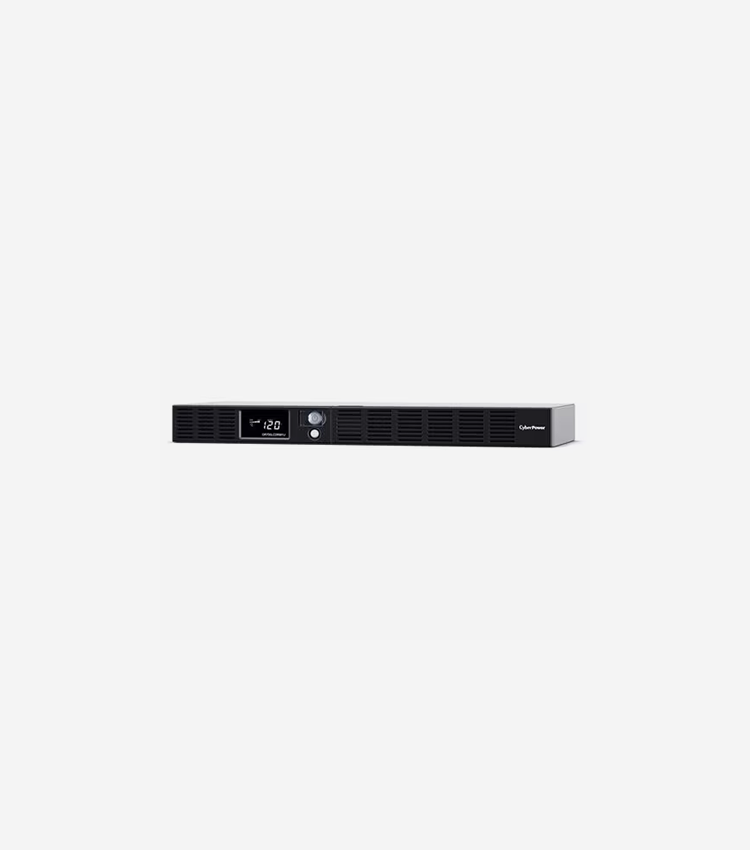

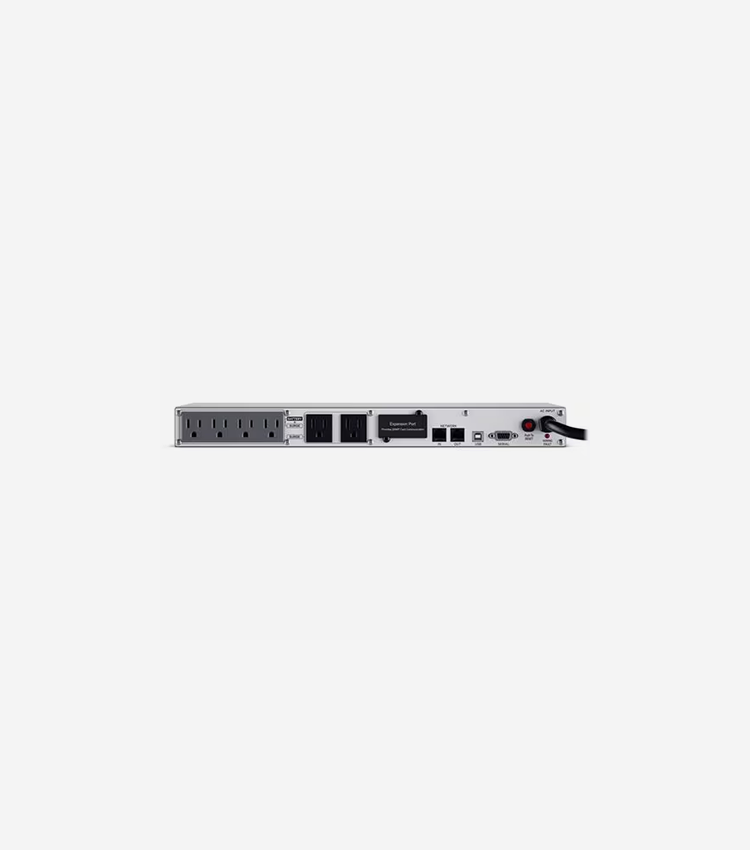

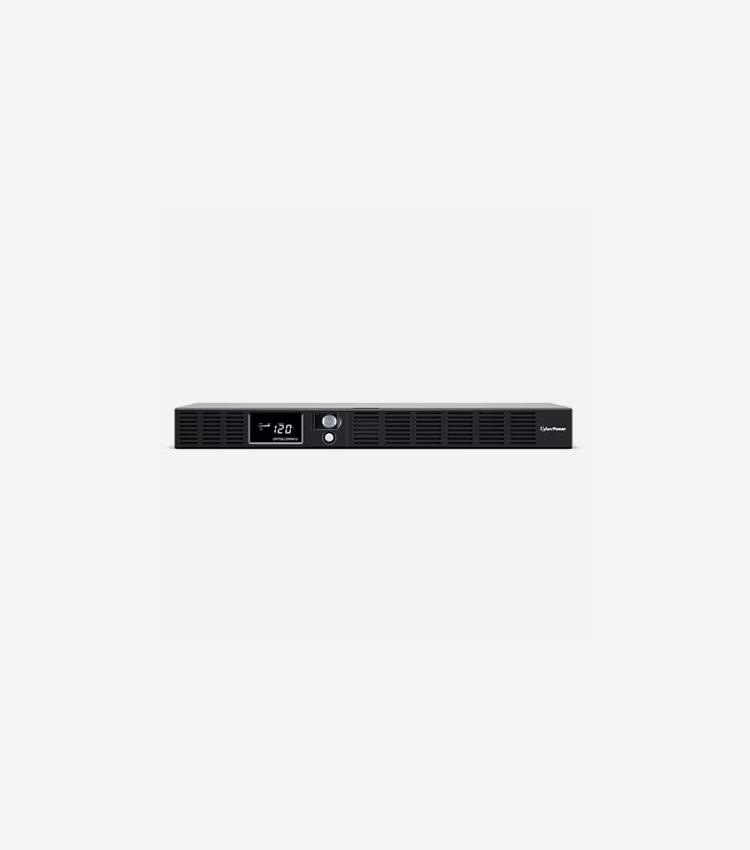

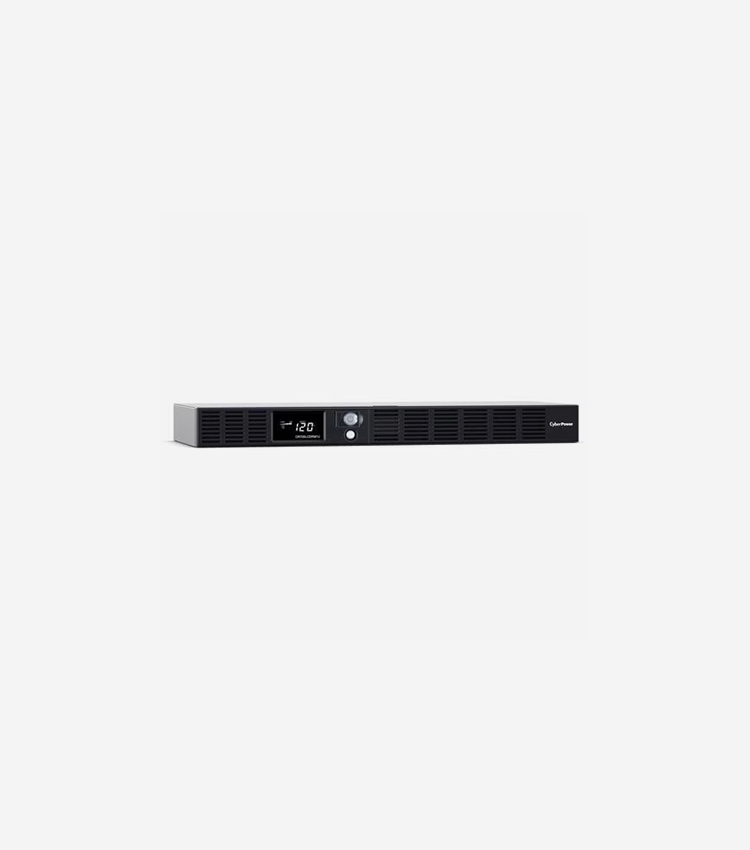

CyberPower UPS Systems OR700LCDRM1U Smart App LCD - Capacity: 700 VA / 400 W - 700VA/400W 1U Rackmount UPS, 6 NEMA 5-15R Outlets, NEMA 5-15P Plug, 10 Ft. Cord, 3 Yr Wty
$482.75
SKU: 60992J
MFG #: OR700LCDRM1U
Guarantee Safe
Checkout
- Description
- Specifications
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR700LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR700LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR700LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- Capacity: 700 VA / 400 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 10%
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 6 × NEMA 5-15R
- Communication: USB, Serial, SNMP
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- ENERGY STAR® certified: Yes
Overview
| Brand | CyberPower |
| Product Line | CyberPower Office Rackmount LCD Series |
| Model | OR700LCDRM1U |
| Manufacturer | Cyber Power |
Network & Communication
| Remote Management Interface | RS-232, USB |
Connectivity
| Input Connectors | 1 |
| Interface Provided | 1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type A |
Power
| Frequency Provided | 60 hertz |
| Technology | Lead acid |
| Batteries Quantity | 2 |
| Battery Capacity | 8 Ah |
| Voltage Provided Margin | ± 10% |
| Provided Voltage | AC 120 volt |
| Battery Recharge Time | 8 Hours |
| Battery Technology | Lead acid |
| Battery Voltage | 6 volt |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 |
| Emergency Power Off | Audible alarm, Automatic Voltage Regulation (AVR), LCD display |
| Frequency | 60 hertz |
| Input Connector Type | Power NEMA 5-15 |
| Input Voltage Range | AC 90 - 140 V |
| Load Type | At full load |
| Max Run Time | 3 min at full load |
| Output Connector Quantity | 6 |
| Output Connector Type | Power NEMA 5-15 |
| Power Capacity | 700 volt ampere per kilogram |
| Power Output Connectors Details | 2 x power NEMA 5-15 (surge), 4 x power NEMA 5-15 (UPS and surge) |
| Power Provided | 400 watt |
| UPS Technology | Line interactive |
| Waveform Type | Stepped approximation to a sinewave |
| Battery Run Time (Up To) | 3 minute (time unit) |
Software
| Software Type | PowerPanel Business Edition |
Technical Information
| Form Factor (Power Device) | External |
| Max Operating Temperature | 35 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| Operating Humidity | 0 - 95% |
| Protection Type | Circuit breaker |
Product Information
| Packaged Quantity | 1 |
| Product Type | UPS |
| Subcategory | UPS |
Included Items
| Cables | Power cable - integrated - 3 m, Serial cable - external, USB cable - external |
Dimensions & Weight
| Height | 4.4 centimetre |
| Height (Rack Units) | 1 |
| Weight | 8.4 kilogram |
| Width | 43.2 centimetre |
| Depth | 23.5 centimetre |
Certifications & Listings
| Compliant Standards | cUL, FCC Class B certified, UL 1778 |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - 3 years |
| Equipment Protection Value | 30000 US Dollars |
| Limited Warranty | 3 Year |
Energy & Performance
| Surge Energy Rating | 1030 joules |
