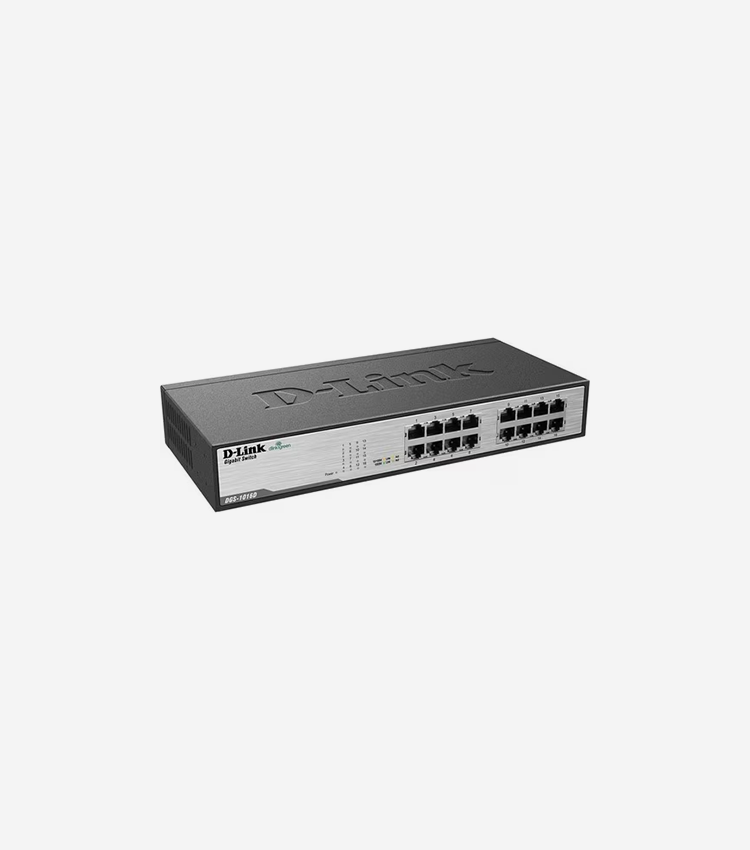

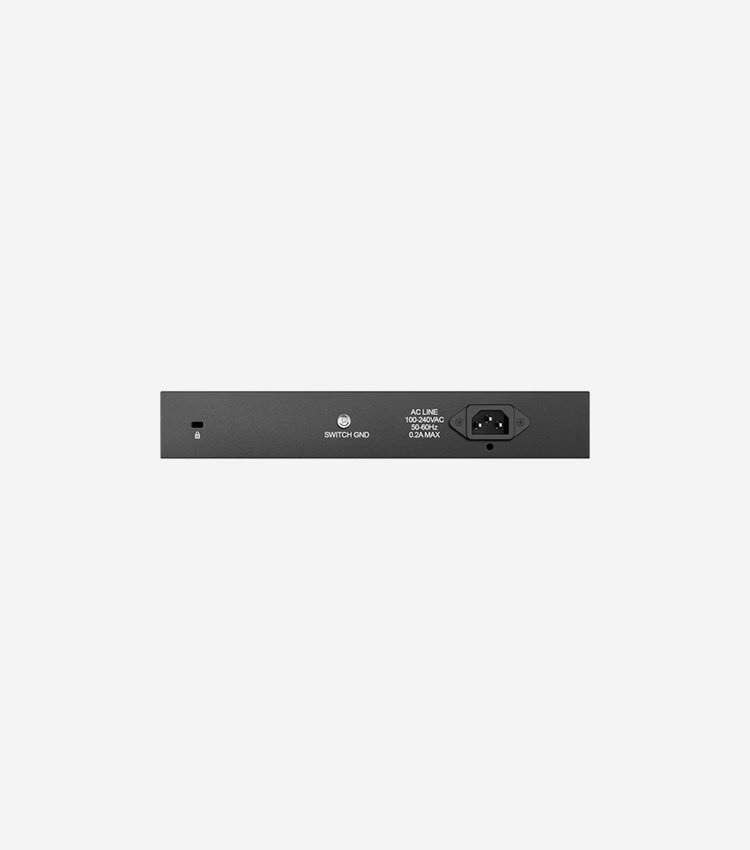

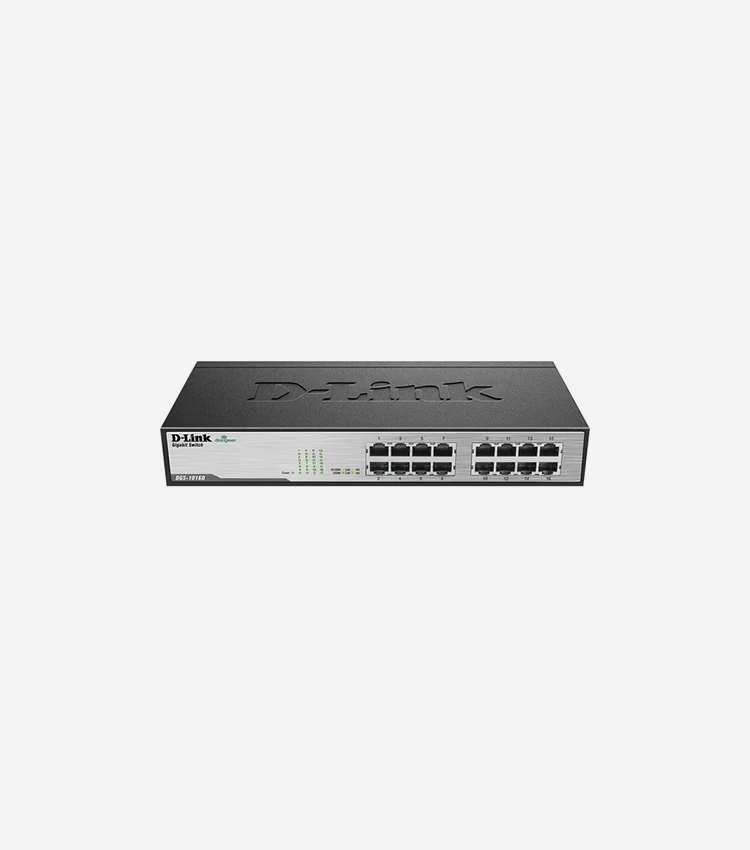

D-Link DGS 1016D - switch - 16 ports - unmanaged - rack-mountable
$102.63
SKU: 755391
MFG #: DGS-1016D
Guarantee Safe
Checkout
- Description
- Specifications
The D-Link® 16-Port Gigabit Switch (DGS-1016D) delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Users in the office, workgroup, or creative production environment can now transfer large bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network without hesitation. The versatile and compact 1RU height design of the DGS-1016D enables the device to be rackmounted in a standard 19-inch rack while conserving valuable rack space.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports
Network & Communication
| Compliant Standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Features | Auto-uplink (auto MDI/MDI-X), Cable Diagnostics Function, D-Link Green Technology, Energy Efficient Ethernet, Fanless, Flow control, Full duplex mode, Half duplex mode, Jumbo Frames support, Quality of Service (QoS), Store and forward |
| Form Factor (Hubs & Switches) | Desktop, Rack-mountable |
| Jumbo Frame Support | 9600 bytes |
| MAC Address Table Size | 8K entries |
| Manageable | No |
| Ports | 16 |
| Product Type | Switch |
| Status Indicators | Link/activity, Port transmission speed, Power |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
Connectivity
| Interface Provided | 16 x 1000Base-T RJ-45 |
| Port Quantity | 16 |
| Port Type | 10/100/1000 |
Power
| Frequency | 50/60 hertz |
Technical Information
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Operating Temperature | 40 degree Celsius |
| Max Storage Temperature | 70 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| Min Storage Temperature | -10 degree Celsius |
| Operating Humidity | 10 - 90% (non-condensing) |
Product Information
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Switching fabric bandwidth: 32 Gbps |
Dimensions & Weight
| Height | 4.4 centimetre |
| Width | 28 centimetre |
| Depth | 18 centimetre |
Physical Characteristics
| Color Category | Black, Gray |
Certifications & Listings
| Compliant Standards | CB, C-Tick Class A, cUL, FCC Class A certified, ICES-003 Class A, RoHS, VCCI Class A |
| ENERGY STAR Certified | No |
