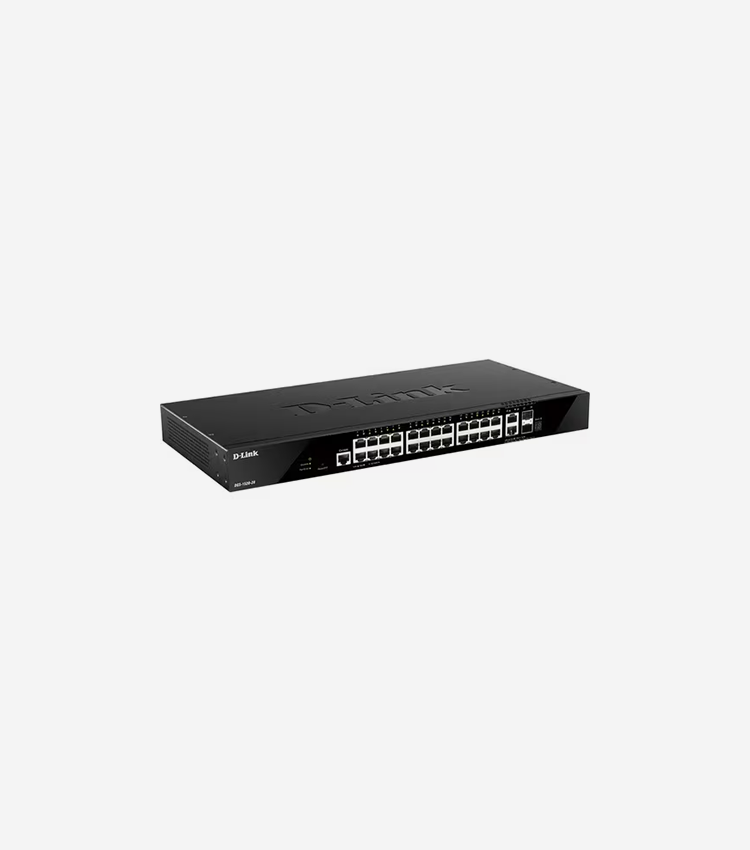

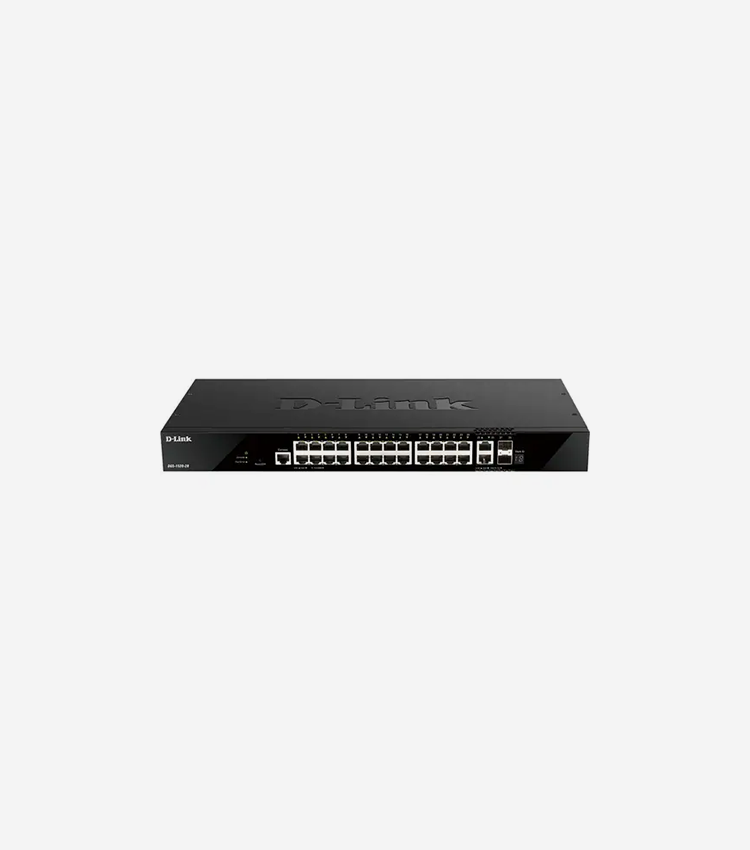

D-Link DGS-1520-28 Layer 3 Switch - 26 Ports - Manageable - 3 Layer Supported - Modular - 30.40 W Power Consumption - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - Lifetime Limited Warranty
$962.71
SKU: 272A1Y
MFG #: DGS-1520-28
Guarantee Safe
Checkout
- Description
- Specifications

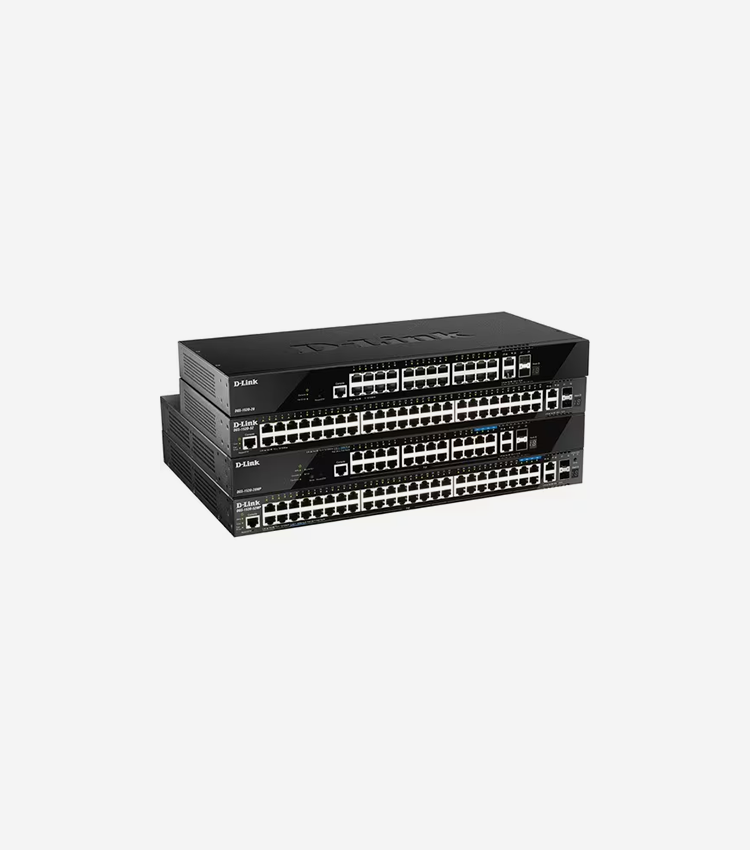

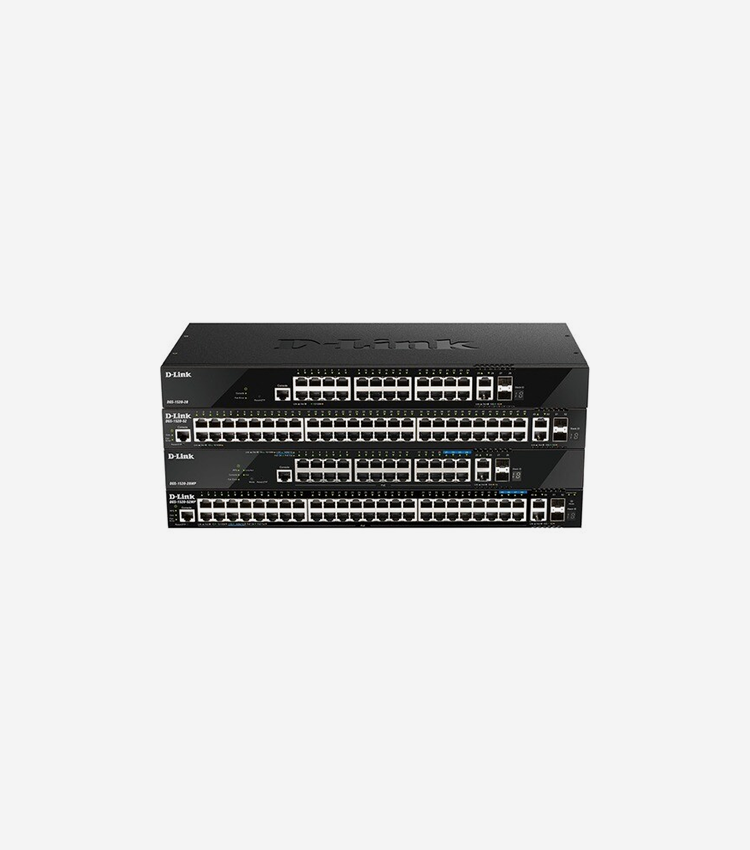

Next Generation Layer 3 Stackable Smart Managed Switch
A new generation of Layer 3 stackable Smart Managed switches to aggregate your Gigabit network with 10G ports for uplink or stacking.
High Availability and Flexibility
- 24 or 48 x 10/100/1000Base-T ports
- 20 or 44 x 10/100/1000Base-T PoE and 4 x 2.5GBase-T PoE ports
- 2 x 10GBase-T and 2 x SFP+ uplink ports
High Bandwidth Stacking
- Physical Stacking of up to 8 units
- 2 x 10GBase-T and/or 2 x SFP+
- 80 Gbps physical stacking bandwidth
Advanced L2 features
- RSPAN
- Selective Q-in-Q
Advanced L3 features
- IGMP v1/v2/v3
- MLD v1/v2
- PIM-SM/DM/SSM
- Static Route
- RIP/RIPng
- OSPF
Reliability and Resiliency
- Ethernet Ring Protection Switching (ERPS)
- Virtual Router Redundancy Protocol (VRRP)
- Redundant Power Supply (RPS) support
Management, Provisioning and Automation
- D-View 7
- D-Link Network Assistant (DNA)
- Zero Touch Provisioning (ZTP)
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Quickly and easily set up a wired network with 26 networking ports
- Cascade to other network devices through the uplink port to expand your local area network
Overview
| Brand | D-Link |
| Product Line | D-Link DGS |
| Model | 1520-28 |
| Manufacturer | D-Link |
Expansion Slots
| QSFP Slots | 10 Gigabit SFP+ |
Network & Communication
| Max Units In A Stack | 8 |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Stackable | Stackable |
| Features | BPDU Filter, Bridge protocol data unit (BPDU), Class of Service (CoS), Denial of Service (DoS), D-Link Discovery Protocol (DDP), DNA support, Energy-Efficient Ethernet (EEE), Ethernet Ring Protection Switching (ERPS), Ethernet Ring Protection Switching (ERPS) v2, Flow mirroring, Generic VLAN Registration Protocol (GVRP), IGMP snooping, Link Aggregation, Loop Guard, Loopback detection, Media Dependent Interface (MDI), Media Dependent Interface Crossover (MDI-X), Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP) 3, Network Timing Protocol (NTP) 4, Open Shortest Path First (OSPF), Port mirroring, Private VLAN, Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), Remote Switch Port Analyzer (RSPAN), Root Guard, Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, VLAN mirroring, VLAN trunking, Voice VLAN, Weighted Deficit Round Robin (WDRR), Weighted Random Early Detection (WRED), Weighted Round Robin (WRR), Zero-touch provisioning (ZTP) |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 12288 bytes |
| MAC Address Table Size | 16384 entries |
| Manageable | Yes |
| Ports | 28 |
| Product Type | Switch |
| Remote Management | RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3 |
| Routing Protocol | DVMRP, ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPF, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IP routing |
| Smart | Yes |
| Status Indicators | Fan, Link/activity, Power, Stack |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
Connectivity
| Interface Provided | 2 x 1000Base-X SFP, 2 x 10GBase-X SFP+, 24 x 1000Base-T RJ-45 |
| Ports Type (2nd) | Gigabit SFP |
| Port Quantity | 24 |
| Port Type | 10/100/1000 |
Power
| Frequency | 50/60 hertz |
| Power Consumption Operational | 30.4 watt |
Technical Information
| Encryption | SSL, TLS 1.0, TLS 1.1, TLS 1.2 |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 122 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 23 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | 468252 Hours |
| Operating Humidity | 10 - 95% (non-condensing) |
Product Information
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), TACACS+ |
| Ports (3rd) Quantity | 2 |
| Capacity | IGMP groups: 512, MLD groups: 256, Static ARP entries: 256, VLAN groups: 4000 |
| Device Type | Internal power supply |
| Ports (2nd) Quantity | 2 |
| Packaged Quantity | 1 |
| Performance | Forwarding performance: 95.24 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity: 128 Gbps |
Dimensions & Weight
| Height (Rack Units) | 1 |
| Height | 1.7 inch |
| Weight | 5.14 lbs |
| Width | 17.3 inch |
| Depth | 8.2 inch |
Physical Characteristics
| Color Category | Black |
Certifications & Listings
| Compliant Standards | BSMI Class A, FCC Class A certified, IC Class A, RCM Class A, VCCI Class A |
| ENERGY STAR Certified | No |
