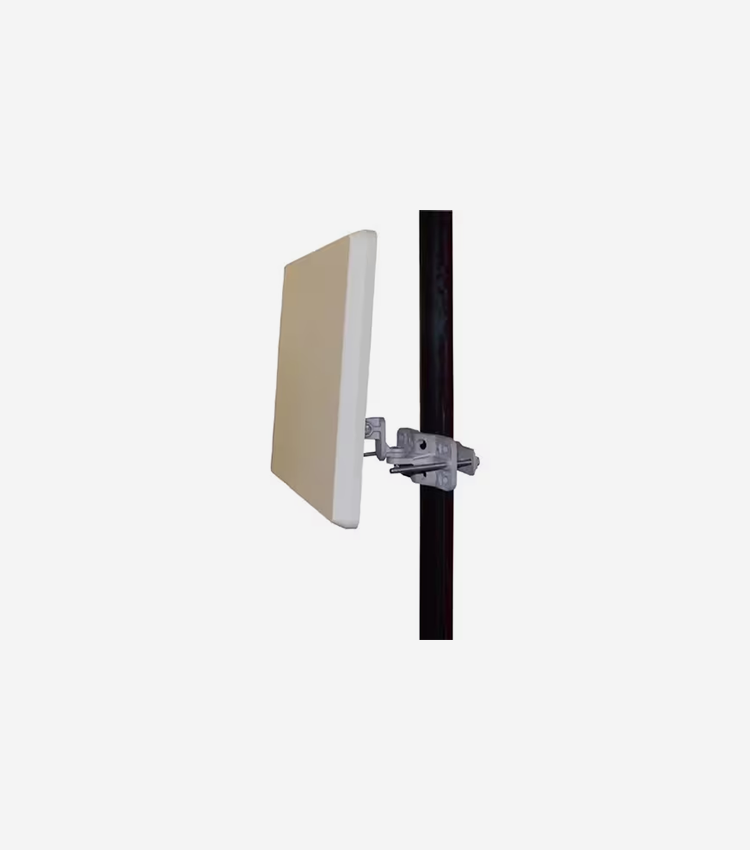

Fortinet FANT-04ABGN-1414-P-N Antenna - 2400 MHz to 2500 MHz, 5150 MHz to 5850 MHz - 14 dBi - Indoor, OutdoorMast - N-Type Connector
$1,174.31
SKU: 999A3Z
MFG #: FANT-04ABGN-1414-P-N
Guarantee Safe
Checkout
- Description
- Specifications
This high density 14 dBi patch antenna is well suited for use outdoors, in warehouses, or in manufacturing environments where it must withstand exposure to moisture and dust. The antenna features a 35-degree beamwidth at both the 2.4GHz and 5GHz bands which helps to minimize co-channel interference. This antenna features four dual band N-Type jacks on the back of the antenna.
- Easily mounts to a mast
- Designed for outdoor applications
Overview
| Brand | Fortinet |
| Product Line | Fortinet |
| Model | FANT-04ABGN-1414-P-N |
| Manufacturer | Fortinet |
Network & Communication
| Impedance | 50 ohm |
Connectivity
| Connector Provided | 4 x N-Series connector male |
Technical Information
| Antenna Cable Length | 24 inch |
| Antenna Form Type | Patch |
| Antenna Placement | Indoor, Outdoor |
| Antenna Gain | 14 dBi |
| Max Operating Temperature | 158 degree Fahrenheit |
| Signaling Type | Wi-Fi |
| Frequency Range | 2400 - 2500 MHz, 5.150 - 5.850 GHz |
| Min Operating Temperature | -22 degree Fahrenheit |
| Horizontal Beamwidth | 35° |
| Vertical Beamwidth | 35° |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
Product Information
| Category of Accessory | Antennas |
| Service Activation | No |
| Product Type | Antenna |
| Features | Linear polarization, Port-to-port isolation 28 dB, Vertical polarisation |
| Package Content | Articulating bracket |
| Packaged Quantity | 1 |
Dimensions & Weight
| Height | 1.3 inch |
| Weight | 7.5 lbs |
| Width | 15 inch |
| Depth | 15 inch |
Physical Characteristics
| Color Category | White |
