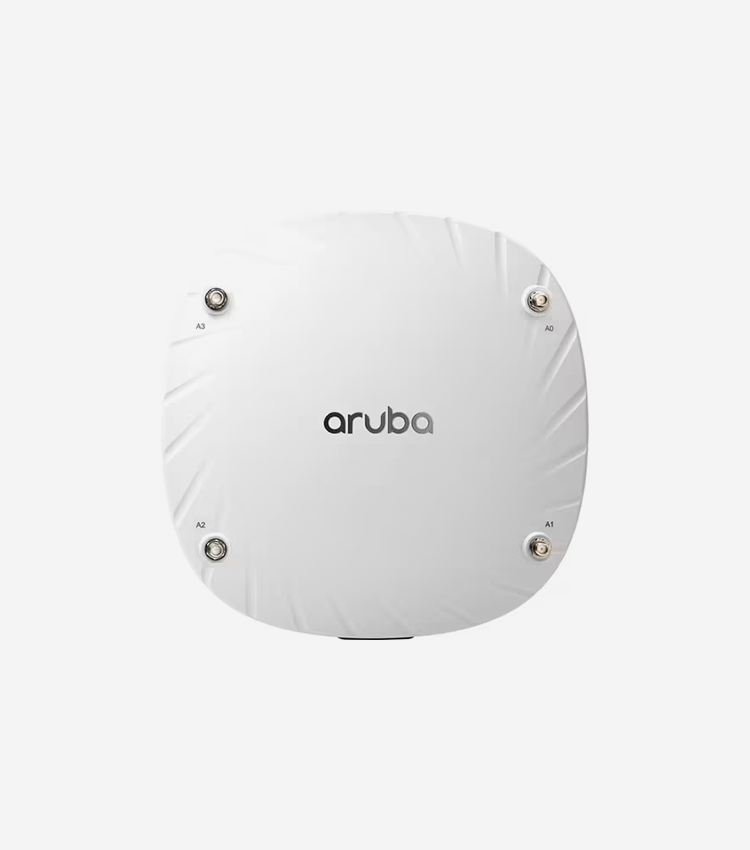

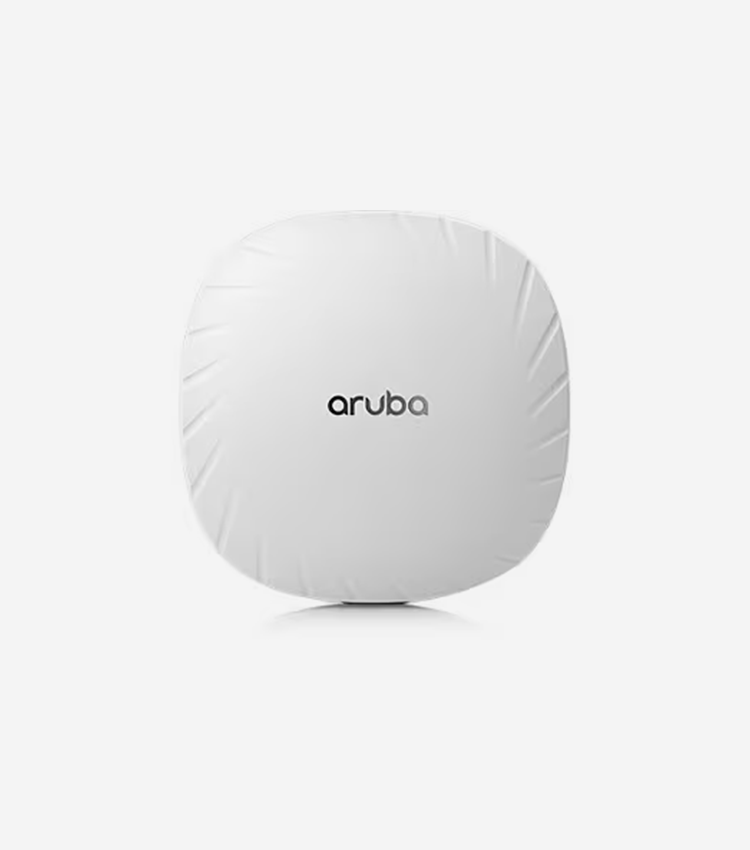

HPE AP-514 802.11ax 5.40 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - Bluetooth 5 - Ceiling Mountable, Wall Mountable, Rail-mountable
$1,392.85
SKU: 940EEM
MFG #: Q9H57A
Guarantee Safe
Checkout
- Description
- Specifications
With an increasing number of mobile and Internet of Things (IoT) devices reliant on wireless access, networks must be capable of accommodating a diverse mixture of device types, applications and services.
The Aruba 510 series campus access points with 802.11ax technology are designed to deliver high performance access for mobile and (IOT) devices in environments where density is an issue. The 510 series uses 802.11ax features to efficiently and simultaneously serve multiple clients and traffic types in dense environments, increasing data rates for both individual device and overall system.
The 510 series support all mandatory and several optional 802.11ax features, which includes up- and downlink OFDMA with up to 16 resource units, multi-user MIMO (MU-MIMO), 4x4 MIMO with up to four spatial streams in 5GHz and 2x2 with up to two special streams in 2.4GHz, channel bandwidths up to 160MHz (5GHz; 40MHz in 2.4GHz), and 1024-QAM modulation.
The 510 series supports maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps). Each AP supports up to 256 associated client devices per radio (typical recommended limit for active clients is 150), making the mid-range 802.11ax 510 series APs ideal for high density environments, such as schools, retail branches, hotels and enterprise offices.
In addition to 802.11ax standard capabilities, the 510 Series supports unique features like Aruba ClientMatch radio management and additional radios for location services and IoT applications. This delivers an unsurpassed user experience in today's all-wireless digital work environment and offers up to 4x higher capacity in a cost-effective manner.
Overview
| Brand | Aruba |
| Product Line | HPE Aruba |
| Model | AP-514 (RW) |
| Manufacturer | Artisoft |
Storage
| Optical Drive Type | None |
Network & Communication
| Data Transfer Rate | 4.8 GBps |
| Compliant Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz |
| Connectivity Technology | Wireless |
| Data Link Protocols | Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Features | 4x4 MU-MIMO technology, Adaptive Radio Management (ARM), Advanced Cellular Coexistence (ACC), Air Monitor (AM), AppRF technology, Aruba AirMatch, ClientMatch, Custom deep-sleep mode, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), Direct Sequence Spread Spectrum (DSSS), Dynamic Frequency Selection (DFS), High Efficiency (HE) support, High-Throughput (HT) support, Intelligent Power Monitoring (IPM), LACP support, LED off mode, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Orthogonal Frequency Division Multiplexing (OFDM), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Core Technology (SCT), Space Time Blocking Code (STBC), Spectrum analyzer, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Unified AP support, Very High Throughput (VHT) support |
| Form Factor | In-ceiling |
| Power Over Ethernet (PoE) | PoE |
| Spread Spectrum Method | DSSS, OFDM |
| Network Band | 2.4 GHz, 5 GHz |
| Wireless LAN | 802.11a/b/g/n/ac/ax, Bluetooth 5.0 |
| Product Type | Wireless access point |
| Status Indicators | Status, System |
Connectivity
| Interface Provided | 1 x 1000Base-T - RJ-45, 1 x console - micro-USB, 1 x HPE Smart Rate - RJ-45, 1 x USB 2.0 - Type A, 4 x antenna - RP-SMA x 4 |
Power
| Power Consumption Operational | 16 watt |
Technical Information
| Antennas | 4 |
| Line Coding Format | 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, CCK, OFDM, OFDMA, QPSK |
| Operating System Required | ArubaOS, InstantOS |
| Internet of Things (IoT) Compatible | Yes |
| Encryption | WPA, WPA2, WPA3 |
| Antenna Form Factor | External detachable |
| Max Operating Temperature | 50 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| MTBF | 64 Year |
| Operating Humidity | 5 - 93% (non-condensing) |
Product Information
| Service Activation | No |
| IoT Communications Technology | Bluetooth, Zigbee |
| Ruggedized Design | Indoor |
| Capacity | BSSIDs per radio: 16, OFDMA units: 16, Wireless clients per Wi-Fi radio: 256 |
| Network Device | Aggregate bandwidth: 5.4 Gbps, Maximum data rate (2.4 GHz): 575 Mbps, Maximum data rate (5 GHz): 4.8 Gbps |
| Packaged Quantity | 1 |
Physical Characteristics
| Color Category | White |
Certifications & Listings
| Compliant Standards | CE/EMC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2014/53/EU, EN 60601-1-1, EN60601-1-2, ETS 300 019 Class 1.1, ETS 300 019 Class 2.3, FCC, IEC/EN/UL 60950, ISED, UL 2043 |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - lifetime |
| Limited Warranty | Limited Lifetime |
