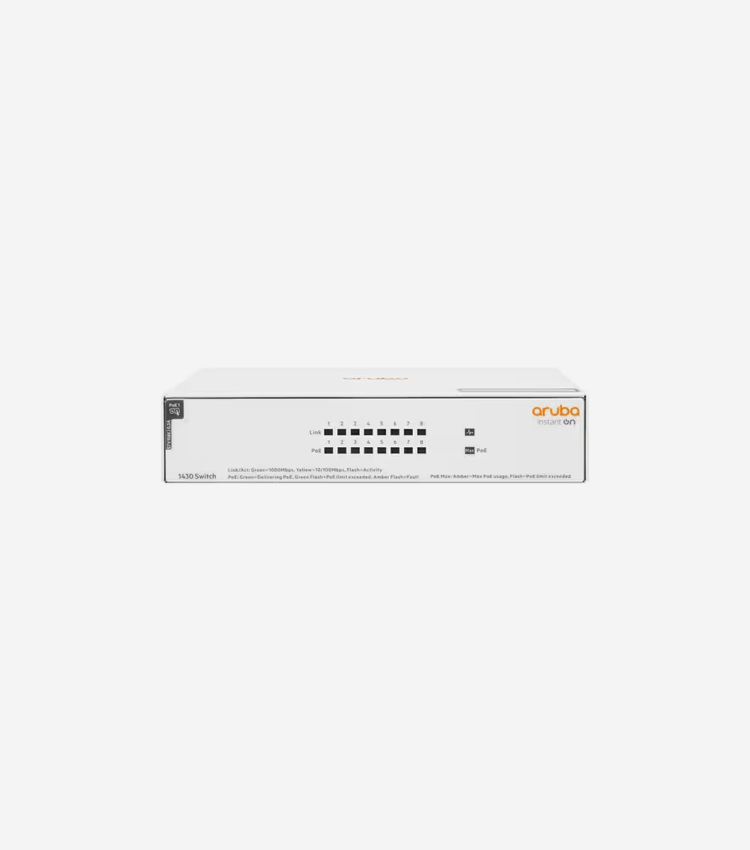

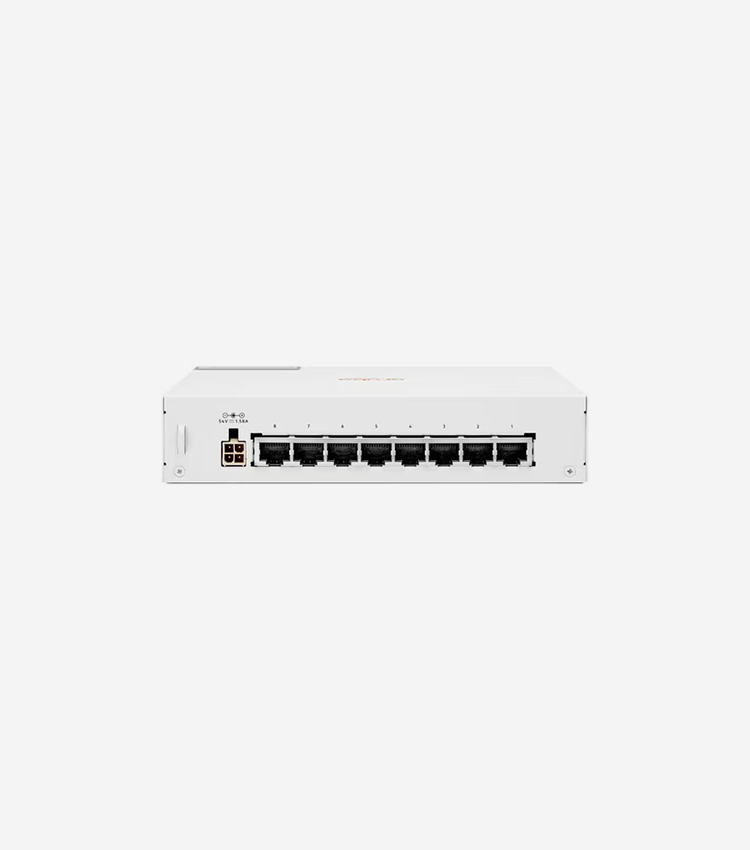

HPE Instant On 1430 8G Class4 PoE 64W Switch - 8 Ports - Gigabit Ethernet
$149.15
SKU: 213B7P
MFG #: R8R46A#ABA
Guarantee Safe
Checkout
- Description
- Specifications
Aruba Instant On 1430 Switch Series
Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budgetstrapped businesses.
The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities - at an affordable price point - to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8- port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).
- Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-, and 26-port models
- Up to 124W of PoE to power APs, IP Phones, and other IoT devices
- No configuration or management needed
- Plug-and-play with fully automated functions and zero ongoing maintenance
- Quality of Service (QoS) and flow control for improved network efficiency
- Fan-less with Energy Efficient Ethernet for low power consumption
- Class B certified for home office networks (5 and 8 port models)
Overview
| Brand | Aruba |
| Product Line | HPE Networking Instant On |
| Model | 1430 8G Class4 PoE 64W Switch |
| Manufacturer | Aruba Instant On |
Memory
| Memory Technology | EEPROM |
| RAM Installed | 128 kilobyte |
Network & Communication
| Compliant Standards | IEEE 802.1p, IEEE 802.3az |
| PoE Budget | 64 watt |
| Features | 2MB packet buffer, Auto-sensing per device, DiffServ Code Point (DSCP) support, Energy-Efficient Ethernet (EEE), Fanless, VoIP support, Wall mountable |
| Form Factor (Hubs & Switches) | Desktop, Rack-mountable, Wall-mountable |
| Power Over Ethernet (PoE) | PoE |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 8192 entries |
| Manageable | No |
| Ports | 8 |
| Product Type | Switch |
| Remote Management | None |
| Status Indicators | Link/activity, PoE max, Port status |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
Connectivity
| Interface Provided | 8 x 10/100/1000 Base-T (PoE) RJ-45 |
| Port Quantity | 8 |
| Port Type | 10/100/1000 (PoE Class 4) |
Power
| Frequency | 50/60 hertz |
| Electric Current Required | 2 A |
| Required Voltage | AC 100-240 volt |
Technical Information
| Humidity Range Storage | 15 - 90% (non-condensing) |
| Max Operating Temperature | 40 degree Celsius |
| Max Storage Temperature | 70 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| Min Storage Temperature | -40 degree Celsius |
| MTBF | 131.1 Year |
| Operating Humidity | 15 - 95% (non-condensing) |
Product Information
| Country | United States |
| Capacity | MAC address entries: 8192 |
| Device Type | External power adapter |
| Localization | English |
| Packaged Quantity | 1 |
| Performance | Latency (1 Gbps): 1.8 µs, Latency (100 Mbps): 2.7 µs, Switching capacity: 16 Gbps, Throughput: 11.9 Mpps |
Included Items
| Included Accessories | Rack kit (2 post) |
Dimensions & Weight
| Height | 3.7 centimetre |
| Weight | 770 gram |
| Width | 17.7 centimetre |
| Depth | 15 centimetre |
Physical Characteristics
| Color Category | White |
Certifications & Listings
| Compliant Standards | AS/NZS CISPR 32 Class B, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CISPR 32:2015 Class B, CISPR 35, CNS 13438 Class B, EN 55032:2015 Class B, EN 55035, EN 61000-3-2, FCC CFR47 Part 15 B Class B, ICES-003 Class B, IEC 61000-3-2, IEC/EN 60825-1:2014 Class 2, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 62368-1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KS C 9832 Class B, KS C 9835, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, VCCI Class B |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - lifetime, Technical support - live chat - lifetime, Technical support - phone consulting - 90 days from date of purchase |
| Limited Warranty | Limited Lifetime |
Energy & Performance
| Standby Power Consumption | 4.1 watt |
