HPE Instant On 1930 24G 4SFP/SFP+ Switch - 28 Ports - Manageable - 3 Layer Supported - Modular - 22.60 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable - Lifetime Limited Warranty
$390.00
SKU: 213QQF
MFG #: JL682A#ABA
Guarantee Safe
Checkout
- Description
- Specifications
Aruba Instant On 1930 switches are advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses and SMBs looking for high performance networking that is easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. This model supports 28 active ports -- 24x 10/100/1000 copper Ethernet RJ45 ports and four 1-Gigabit / 10-Gigabit SFP+ style uplink slots.
Using either the Instant On mobile app or its cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. Also available is a comprehensive local web interface. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. Advanced features include VLANs, 802.1X radius-based network login, three levels of Spanning Tree protocol, and Layer 3 static routing, among others. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees. All are backed by Aruba's Limited Lifetime Warranty.
- High performance yet affordable Gigabit switches built for small businesses and SMBs, with simple-to-use cloud management at no added cost.
- This model: 24 x 10/100/1000 RJ45 ports plus four (4) dedicated 1G / 10G SFP+ slots for fiber uplinks or additional ports. (SFP and SFP+ transceivers separately sold) Shares common app and cloud-based administration with Instant On Wi-Fi Access Points, for Wi-Fi optimized networking.

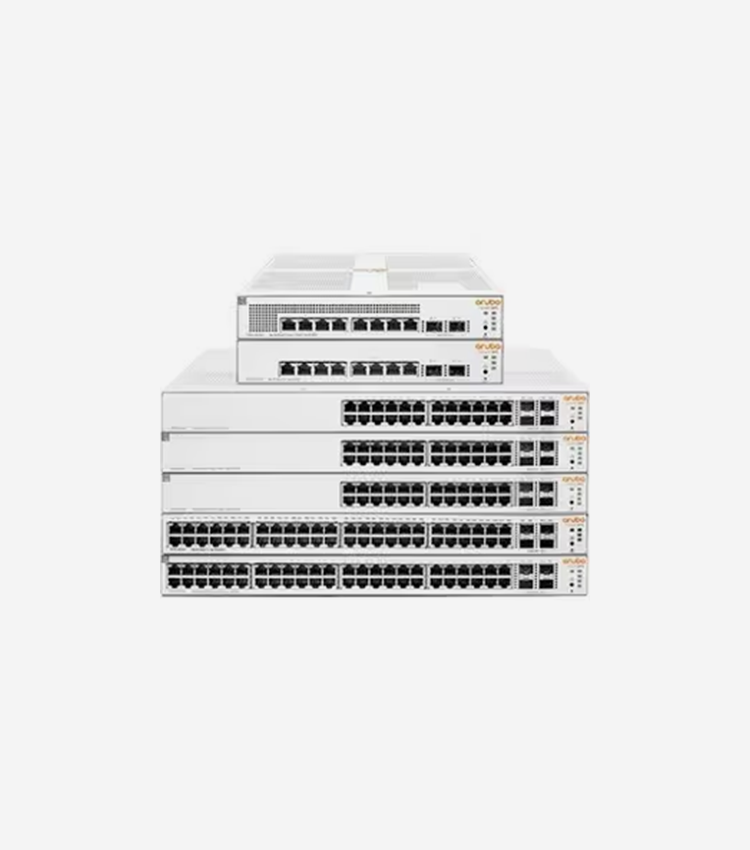

- The series offers a complete portfolio of switch model choices. Choose from seven models -- 10-port, 28-port, 52-port models without and with Class 4 PoE+ Power over Ethernet.
- Guard your network from unwanted or unauthorized access with switch features such as IEEE 802.1X and VLANs
- Use a mobile app to easily setup, monitor and manage your network
- Limited Lifetime Support provides 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.
Overview
| Brand | Aruba |
| Product Line | HPE Networking Instant On |
| Model | 1930 24G 4SFP/SFP+ Switch |
| Manufacturer | Aruba Instant On |
Processor
| Processor Type | Cortex-A9 |
| Clock Speed | 800 megahertz |
| Processor Brand | ARM |
| Processors Installed | 1 |
Memory
| Flash Memory Installed | 256 megabyte |
| Memory Technology | SDRAM |
| RAM Installed | 512 megabyte |
Network & Communication
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Advanced Switching | Layer 3 |
| Features | Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Class of Service (CoS), DHCP support, Energy Efficient Ethernet, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), VLAN support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16000 entries |
| Manageable | Yes |
| Ports | 28 |
| Product Type | Switch |
| Remote Management | HTTP, HTTPS, RADIUS, RMON, SNMP 1, SNMP 2c, SNMP 3, TFTP |
| Routing Protocol | Static IP routing |
| Status Indicators | Port status, Power |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
Connectivity
| Ports Type (2nd) | 1 Gigabit / 10 Gigabit SFP+ |
| Interface Provided | 24 x 10/100/1000 Base-T RJ-45, 4 x 1/10Gbit LAN SFP+ |
| Port Quantity | 24 |
| Port Type | 10/100/1000 |
Power
| Frequency | 50/60 hertz |
| Power Consumption Operational | 22.6 watt |
Technical Information
| Encryption | SSL |
| Humidity Range Storage | 15 - 95% (60 °C) |
| Max Operating Temperature | 40 degree Celsius |
| Max Storage Temperature | 70 degree Celsius |
| Min Operating Temperature | 0 degree Celsius |
| Min Storage Temperature | -40 degree Celsius |
| MTBF | 158 Year |
| Operating Humidity | 15 - 95% (40 °C) |
Product Information
| Country | United States |
| Authentication Method | RADIUS |
| Device Type | Internal power supply |
| Capacity | Access Control Entries (ACEs) per ACL: 480, IPv4 routes (static): 32, Link aggregation ports: 8, Packet buffer size: 1.5 MB, VLANs supported: 256 |
| Localization | English |
| Ports (2nd) Quantity | 4 |
| Packaged Quantity | 1 |
| Performance | Latency (1 Gbps): 2.4 µs, Latency (10 Gbps): 1.3 µs, Switching capacity: 128 Gbps, Throughput: 95.23 Mpps |
Dimensions & Weight
| Height | 4.39 centimetre |
| Height (Rack Units) | 1 |
| Weight | 2.41 kilogram |
| Width | 44.25 centimetre |
| Depth | 22.15 centimetre |
Physical Characteristics
| Color Category | White |
Certifications & Listings
| Compliant Standards | CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, CSA C22.2 No. 60950-1, EN 55024:2010, EN 55032:2015+AC:2016, EN 55035:2017, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62368-1:2014, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, SSL, UL 60950-1, UL 62368-1 Second Edition, VCCI |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - lifetime |
| Limited Warranty | Limited Lifetime |
