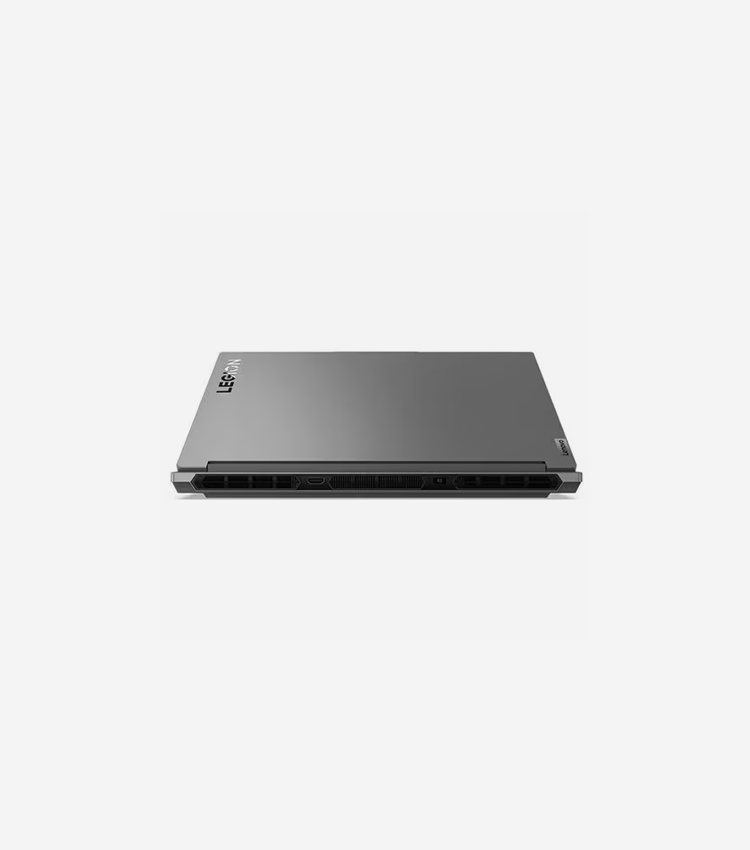

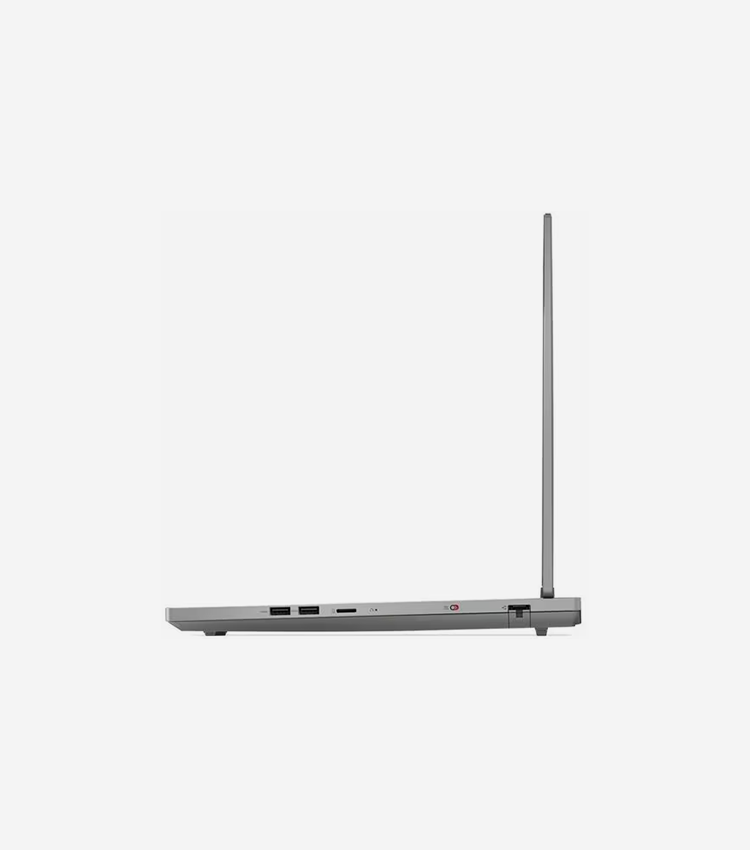

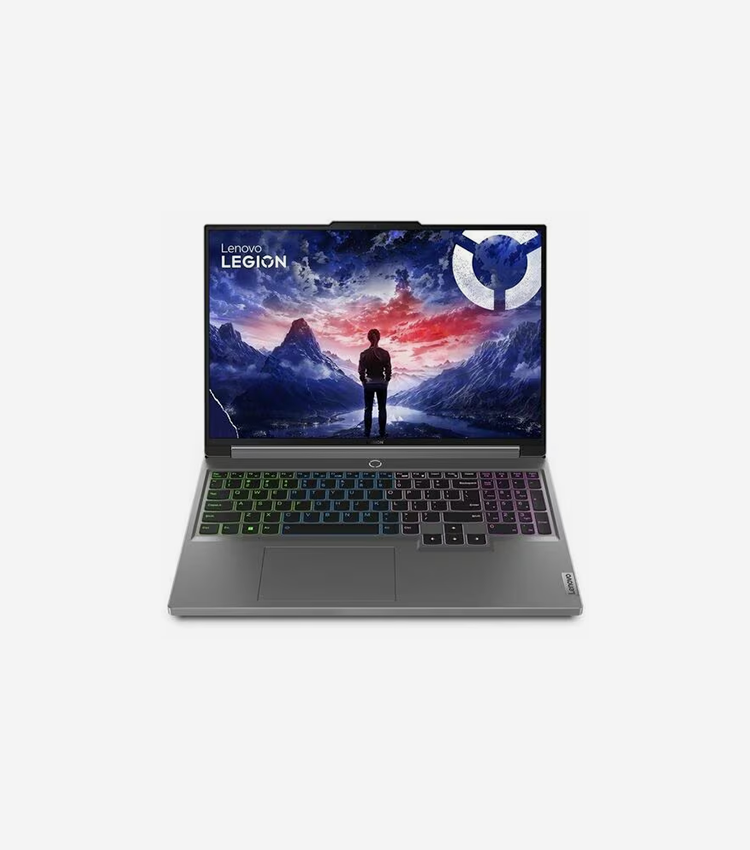

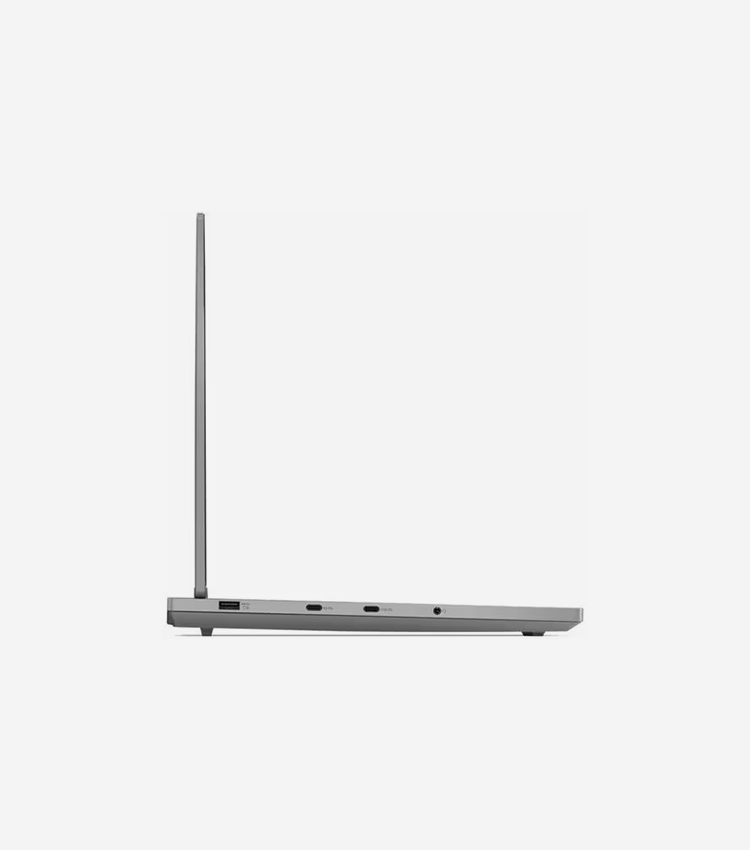

Lenovo Legion 5 16IRX9 83DG00A9US 16" Gaming Notebook - WQXGA - Intel Core i7 14th Gen i7-14700HX - 32 GB - 1 TB SSD
$2,792.05
SKU: BT0136
MFG #: 83DG00A9US
Guarantee Safe
Checkout
- Description
- Specifications
5 Series Laptops | The intersection of minimalism and raw power
Own the room and the leaderboard with Legion 5 series gaming laptops. Designed with a plethora of high-performance options, while keeping a low profile with clean, minimalist looks that complement your lifestyle.
- NVIDIA GeForce RTX 4070 8 GB discrete graphic card provides excellent ability in a variety of multimedia applications and user experiences
- Intel Core i7 2.10 GHz processor provides lightning fast speed and peak performance for the toughest of tasks and games
- 16" display with 2560 x 1600 resolution showcases movies, games and photos with impressive clarity
Overview
| Brand | Lenovo |
| Product Line | Lenovo Legion 5 16IRX9 |
| Model | 83DG |
| Manufacturer | Lenovo Express Models |
Processor
| Processor Generation | 14 |
| Clock Speed | 2.1 GHZ |
| Cores | 20-core |
| Max Turbo Speed | 5.5 GHZ |
| Processor Brand | Intel |
| Processor Main Features | Integrated memory controller |
| Processor Number | I7-14700HX |
| Processor Type | Core i7 |
Memory
| Memory Card Reader | Card reader |
| Supported Flash Memory | SD Memory Card |
| Cache Memory Installed | 33 megabyte |
| Configuration Features | 2 x 16 GB |
| Max Memory Supported | 64 GB |
| Memory Slots | 2 |
| Memory Speed | 5600 megahertz |
| Memory Technology | DDR5 SDRAM, GDDR6 SDRAM |
| RAM Installed | 32 GB |
| Rated Memory Speed | 5600 megahertz |
Storage
| Hard Drive Capacity | 1 TB |
| Hard Drive Features | NVM Express (NVMe) |
| Optical Drive Type | No optical drive, None |
| SSD Form Factor | M.2 2280 |
| Storage Type | SSD |
| Hard Drive Interface | PCIe 4.0 x4 |
Display & Graphics
| Horizontal Viewing Angle | +89 / -89 |
| Aspect Ratio | 16:10 |
| VR Ready | Yes |
| Discrete Graphics Processor | Yes |
| Video System Features | Advanced Optimus, Direct X 12 Ultimate, Dynamic Boost 2.0, NVIDIA DLSS 3 |
| Vertical Viewing Angle | +89 / -89 |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Display Image Brightness | 350 candela per square metre |
| V-Sync Rate at Max Res. | 165 hertz |
| Display Resolution Abbreviation | WQXGA |
| Display Type | LED |
| Features | Advanced optimus, Anti-glare, Dolby Vision, Factory Calibration, Low Blue Light technology, NVIDIA G-SYNC compatible, X-Rite factory color calibration |
| Graphics Controller Model | NVIDIA GeForce RTX 4070 / Intel UHD Graphics |
| Graphics Processor Series | Intel UHD Graphics, NVIDIA GeForce RTX |
| Maximum Monitors Supported | 3 |
| Native Resolution | 2560 x 1600 |
| Privacy Technology | None |
| Screen Size | 16 inch |
| Screen Size (metric) | 40.6 centimetre |
| TFT Technology | IPS |
| Touchscreen | No |
| Widescreen Display | Yes |
Camera
| Webcam | Yes |
| Front Camera Resolution | 1080p |
Video
| Installed Size | 8 GB |
Audio
| Audio Input Type | Dual array microphone |
| Compliant Standards | High Definition Audio |
Connectivity
| HDMI Ports | 1 |
| Interfaces | 2 x USB 3.2 Gen 2, HDMI, Headphone/microphone combo jack (mini-phone 3.5 mm), LAN (RJ-45), USB 3.2 Gen 1 (Always On), USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode), USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) (140W Power Delivery) |
| USB 3.0 Ports | 3 |
| USB Type-C Ports | 2 |
| USB-C Features | USB Power Delivery |
Network & Communication
| Host Interface | M.2 Card |
| Data Link Protocols | Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Features | Dual stream (2x2) |
| Wired Protocol | Gigabit Ethernet |
| Wireless LAN | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
Technical Information
| Numeric Pad | Yes |
| Mechanical Design | 180° hinge design |
| Chipset Type | Intel HM770 |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Input Device Type | Keyboard, Touchpad, TrackPoint, UltraNav |
| Form Factor (RAM) | SO-DIMM 262-pin |
| Max Operating Temperature | 35 degree Celsius |
| Min Operating Temperature | 5 degree Celsius |
| Operating Humidity | 8 - 95% |
Product Information
| Audio Output Features | Nahimic audio |
| Surface Treatment | Aluminium anodizing stamping with sandblasting |
| Audio Codec | Realtek ALC3287 |
| Country | United States |
| Features | E-camera shutter, Fixed focus, LA1 chip |
| Input Device Features | 4-Zone RGB backlight, Buttonless touchpad, Multi-touch touchpad |
| Keyboard Backlight | Yes (RGB) |
| Keyboard Localization | English |
| Keys Layout | QWERTY |
| Localization | English |
| Output Type | Stereo speakers |
| Packaged Quantity | 1 |
| Platform Supported | Windows |
| Product Type | Notebook |
Expansion Slots
| Slots | 2 x M.2 (PCI Express 4.0 x4) (1 free) |
Scanning
| Bundled Services | 3 Years Legion Ultimate Support with Onsite |
Software
| Operating System | Windows 11 Pro |
| Software Type | Microsoft Office (Trial) |
| Operating System Edition | Windows 11 Pro |
| Operating System Language | English |
| Operating System Platform | Windows |
Power
| Battery Capacity | 80 watt hour(s) |
| Battery Run Time (Up To) | 6.5 Hours |
| Battery Chemistry | Lithium polymer |
| Frequency | 50/60 hertz |
| Power Provided | 230 watt |
| Required Voltage | AC 100-240 volt |
Included Items
| Included Accessories | Power adapter |
Physical Characteristics
| Case Material | Aluminum (top), Polycarbonate ABS (bottom) |
| Color | Luna gray |
| Color Category | Gray |
Dimensions & Weight
| Height | 2.52 centimetre |
| Weight | 2.36 kilogram |
| Width | 35.97 centimetre |
| Depth | 26.23 centimetre |
Certifications & Listings
| Compliant Standards | Energy-Related Products (ErP) Lot 26, Energy-Related Products (ErP) Lot 6, RoHS, TUV Rheinland Low Blue Light (Hardware Solution) |
Service & Support
| Service & Support Details | Base warranty - 1 year - pick-up and return, Extended warranty - 3 years - on-site, Limited warranty - battery - 1 year |
| Limited Warranty | 3 Year |
