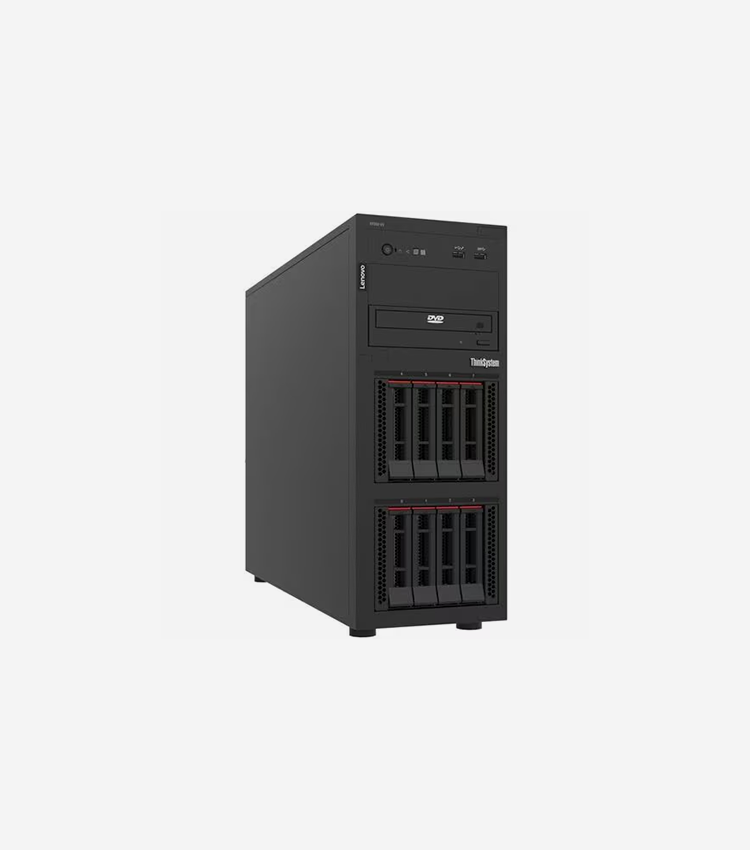

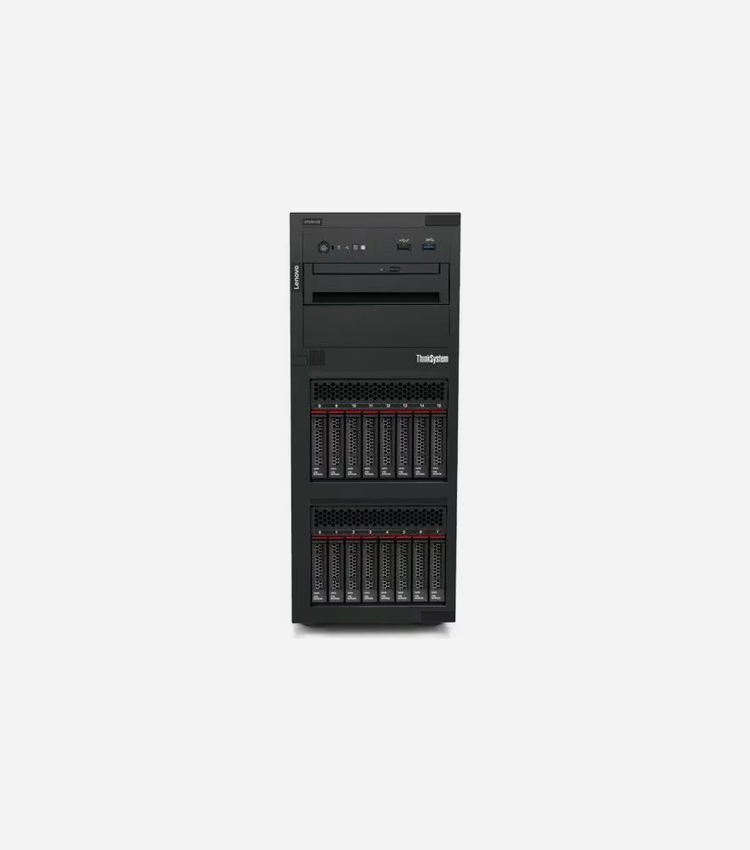

Lenovo ThinkSystem ST250 V3 7DCEA01WNA Tower Server - 1 x Intel Xeon E-2488 3.20 GHz - 16 GB RAM - 12Gb/s SAS Controller
$2,929.04
Save $276.76
$2,652.28
SKU: BW7961
MFG #: 7DCEA01WNA
Guarantee Safe
Checkout
- Description
- Specifications
The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- 1 x 300 W power supply unit (PSU) for your system's power requirements
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.40 GHz processor
- 16 GB memory offers effective multitasking
Overview
| Brand | Lenovo |
| Product Line | Lenovo ThinkSystem ST250 V3 |
| Model | 7DCE |
| Manufacturer | Lenovo |
Processor
| Clock Speed | 3.2 GHZ |
| Bus Type | PCI Express 3.0 x8 |
| Cores | 8-core |
| Processor Socket | LGA1700 Socket |
| Server Scalability | 1-way |
| Max Turbo Speed | 5.6 GHZ |
| Processors Installed | 1 |
| Total Processor Supported | 1 |
| Processor Brand | Intel |
| Processor Number | E-2488 |
| Processor Type | Xeon |
Memory
| Available Memory Slots | 3 |
| Cache Memory Installed | 24 megabyte |
| Features | Unbuffered |
| Configuration Features | 1 x 16 GB |
| Max Memory Supported | 128 GB |
| Data Integrity Check | ECC |
| Memory Slots | 4 |
| Memory Speed | 4800 megahertz |
| Memory Technology | DDR5 SDRAM |
| RAM Installed | 16 GB |
| Rated Memory Speed | 4800 megahertz |
Storage
| Channel Quantity | 8 |
| Drive Type | No optical drive |
| RAID Levels | RAID 0, RAID 1, RAID 10, RAID 5 |
| Optical Drive Type | No optical drive, None |
| Storage Controller Name | ThinkSystem RAID 5350-8i |
| Optical Drive Type (2nd) | None |
| Storage (2nd) | None |
| Storage (3rd) | None |
| Storage (4th) | None |
| Storage Controller Type | RAID |
| Type | None |
| Hard Drive Interface Type | No HDD |
Display & Graphics
| Display Technology | None. |
| Video Interfaces | VGA |
| Graphics Controller Model | Matrox G200 |
| Graphics Processor Series | Matrox G200 |
Audio
| Audio Input Type | None |
Video
| Installed Size | 16 megabyte |
Connectivity

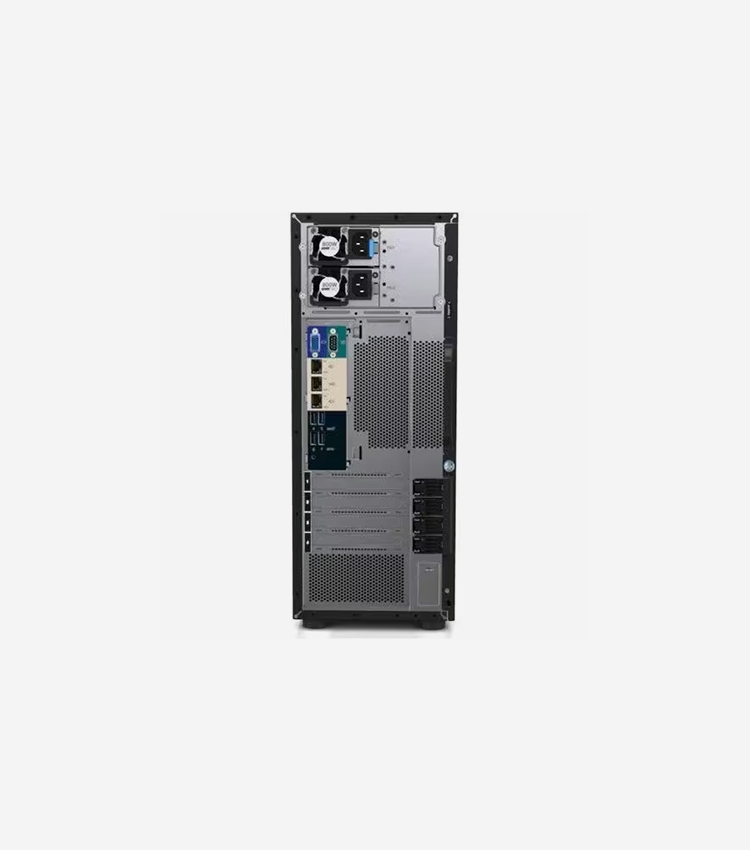

| Interface Provided | 1 x management - RJ-45, 1 x serial, 1 x USB 2.0 (1 in front), 1 x USB 3.2 Gen 1 (1 in front), 1 x VGA, 2 x LAN (Gigabit Ethernet) - RJ-45, 4 x USB 3.2 Gen 2 |
Network & Communication
| Remote Management Controller | XClarity Controller 2 (XCC2) Standart |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controllers | Broadcom BCM5720 |
| Features | PXE support, Teaming support |
Technical Information
| Built-in Devices | LED panel |
| Chipset Type | Intel C266 |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Form Factor | Tower |
| Form Factor (RAM) | DIMM 288-pin |
| Storage Controller Interface | Serial ATA-600 / SAS 3.0 |
Product Information
| Front Accessible Bays | 2 |
| Controllers Included | 1 |
| Hot-Swap Bays | 8 |
| Country | North America |
| Printer Product Type | None |
| Server Storage Bays | Hot-swap |
| Server Swappable Drive Form Factor | 2.5" |
| Manufacturer Form Factor | Tower |
| Server Swappable Drive Form Factor (metric) | 6.4 cm |
| Packaged Quantity | 1 |
| Product Type | Server |
| Security Slot Type | Kensington security slot |
| Theft Protection | Chassis intrusion switch, Padlock loop, Security lock slot (cable lock sold separately) |
Expansion Slots
| Slots | 1 PCIe 4.0 x16 - half-length, full-height, 1 PCIe 4.0 x4 - half-length, full-height (x8 mode), 2 (total) / 2 (free) x PCIe 4.0 x4 - half-length, full-height |
| Expansion Bays | 2 (total) / 2 (free) x external 5.25" x 1/2H, 8 (total) / 8 (free) x hot-swap 2.5" |
Software
| Operating System Edition | No operating system |
Power
| Power Supplies Installed | 1 |
| Power Device Type | Power supply - hot-plug |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
| Frequency | 50/60 hertz |
| Redundant Power Supply Supported | 1+1 (with optional power supply) |
| Power Provided | 800 watt |
| Required Voltage | AC 100-240 volt |
Physical Characteristics
| Color Category | Black |
Dimensions & Weight
| Height (Rack Units) | 4 |
| Height | 17.6 centimetre |
| Weight | 15.81 kilogram |
| Width | 44.4 centimetre |
| Depth | 57.8 centimetre |
Certifications & Listings
| Energy Star Version | 4.0 |
| Compliant Standards | (EU) 2019/424, ANSI/UL 62368-1, AS/NZS 62368.1, AS/NZS CISPR 32 Class A, BIS 13252 (Part 1), CCC, CECP, CELP, CISPR 32 Class A, CISPR 35, CMIM, CNS 15598-1, CNS 15663 section 5, CNS 15936 Class A, CQC3135, CSA C22.2 62368-1, EK1-ITB2000, EN 55032 Class A, EN 62368-1, EN55032 Class A, EN55035, EN61000-3-11, EN61000-3-12, Energy-Related Products (ErP) Lot 9, FCC Part 15 A, GB 17625.1, GB 4943.1, GB/T9254, GS, HJ 2507-2011, ICES-003 issue 7 Class A, IEC 60950-1, IEC 62368-1, IEC/EN 63000, INMETRO, KN32 Class A, KN35, NOM-019, NRCS LOA, TP EAC 037/2016, TP TC 004/2011, TP TC 020/2011, UKCA, UkrCEPRO, UL2819, VCCI Class A |
| ENERGY STAR Certified | Yes |
| TCO Certified | No |
Service & Support
| Service & Support Details | Limited warranty - 3 years - on-site - response time: next business day |
| On-Site Warranty | On-site |
| Limited Warranty | 3 Year |
