What are the key specs of the APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black?

Colour: Black; Cable Length: 1.98 m; Width: 444 mm; Depth: 102 mm; Height: 44 mm; Weight: 1.73 kg.

What is the return policy for the APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black?

The APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black can be returned by mail within 14 days of delivery. A 10% restocking fee may apply, and return shipping is at the customer's cost.

APC by Schneider Electric

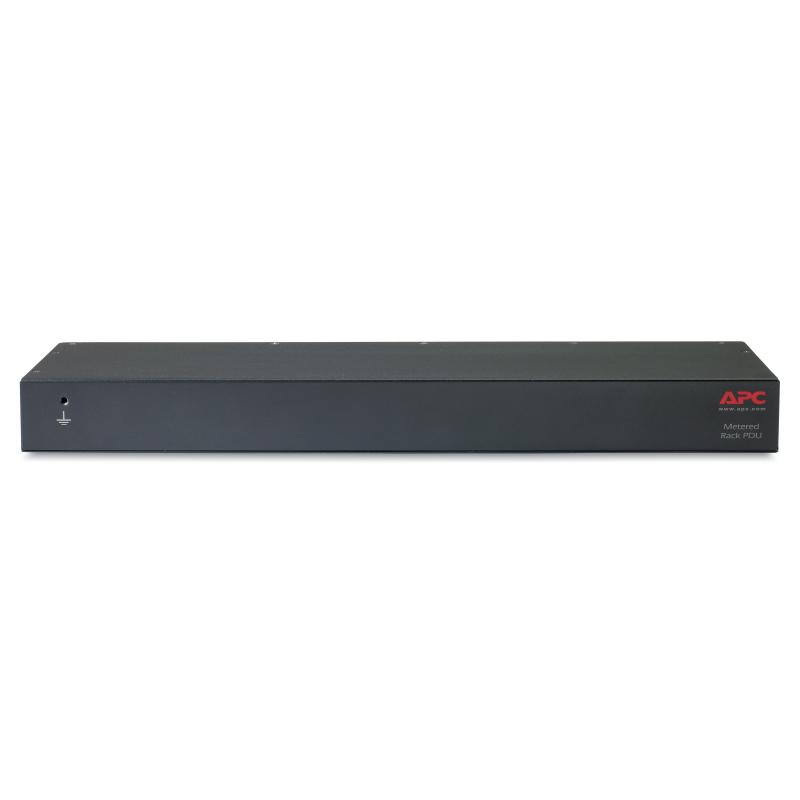

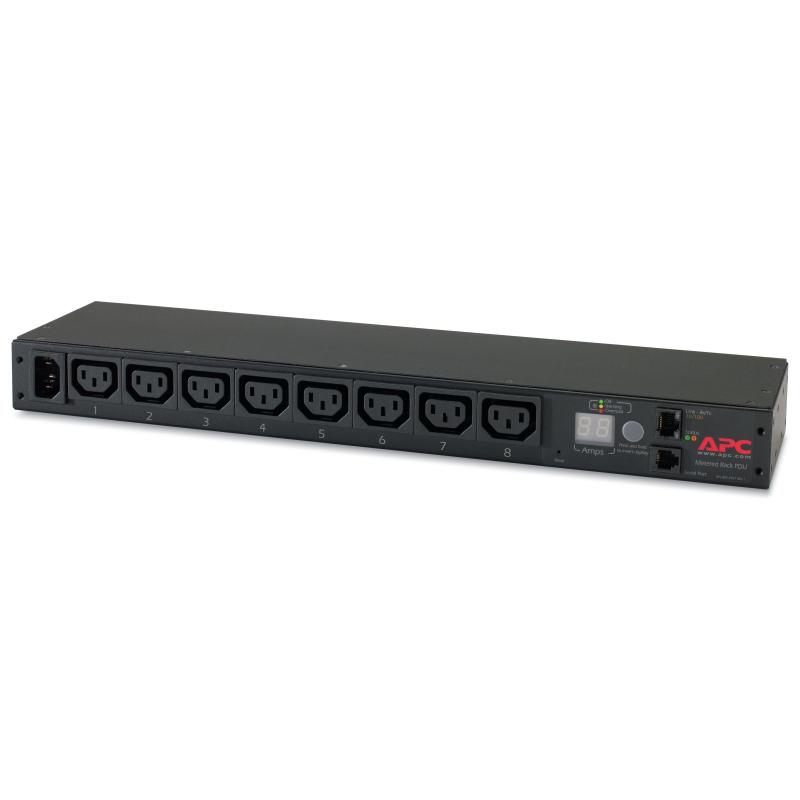

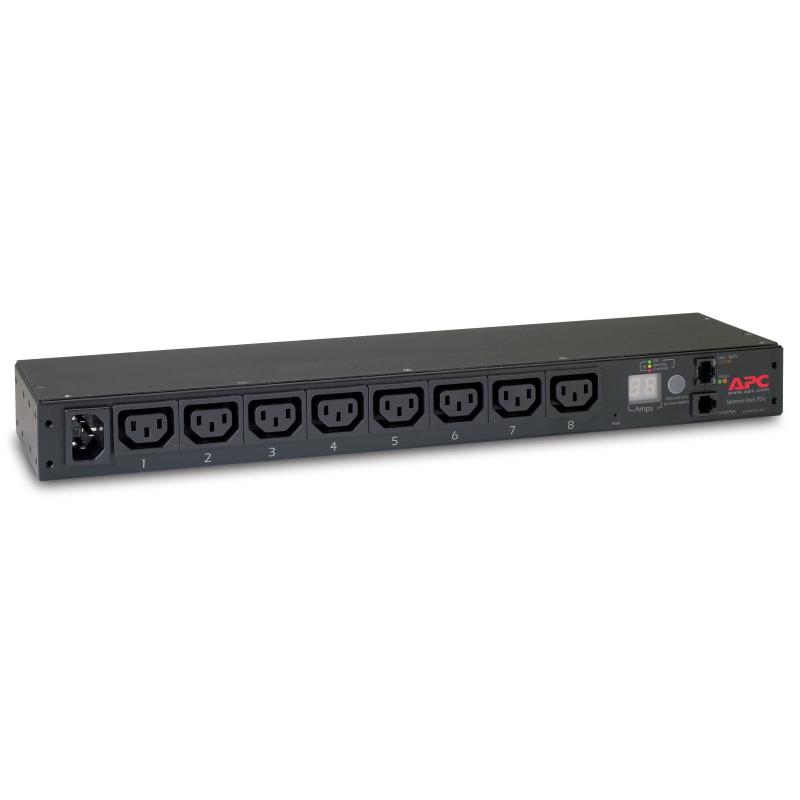

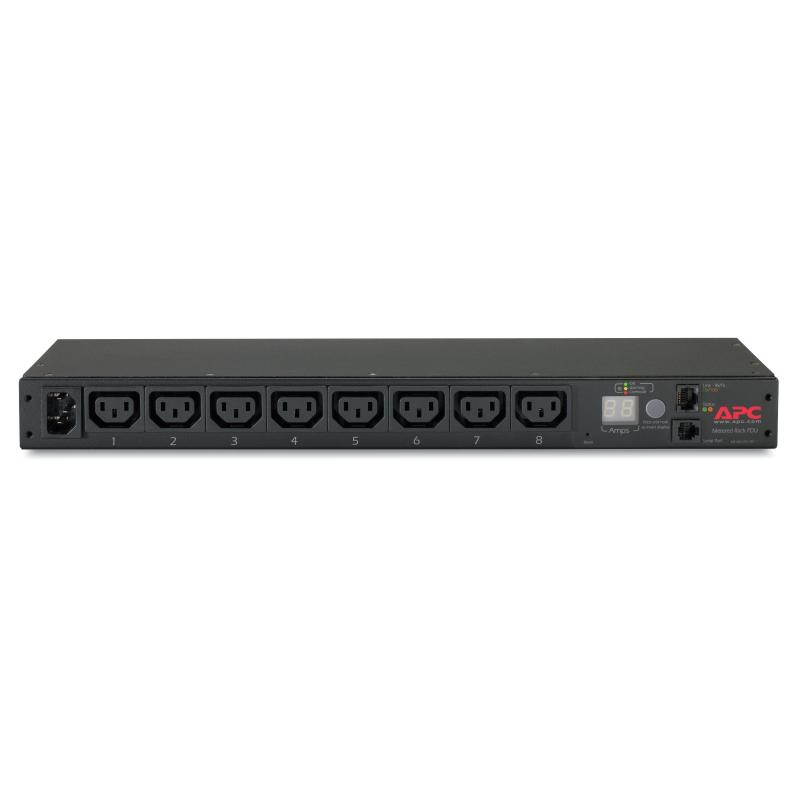

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

Name: APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Brand: APC by Schneider Electric
SKU: AP7820B
Price: 867.40 CAD
Availability: BackOrder

SKU: AP7820B

$867.40 CADEn rupture — commande différée — Expédié dès disponibilité

En rupture — commande différéeExpédié dès disponibilité

Appelez pour la disponibilité · 905-571-2877 Demander une soumission

Retours sous 14 jours — articles non ouverts dans leur emballage d'origine

Livraison: Livraison gratuite pour les commandes de 700 $ CAD ou plus; en dessous, un tarif fixe de 15 $ CAD partout au Canada. Vendu au Canada par NetraHub, Mississauga (Ontario). Prix en dollars canadiens.

Revendeur ou installateur? Demandez un compte entreprise.

Marketing Features

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring
Status available to customers both in the data center and remotely

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Agility

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Général
Marque	APC by Schneider Electric
UGS	AP7820B
Numéro de pièce du fabricant	AP7820B
GTIN	0731304331506
Poids	1.73 kg
Catégories	Unites de distribution d alimentation (PDU)
Design
PDU types	Metered
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
Power plug	C14 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C14
Features
LED indicators	Yes
Cable length	1.98 m
Management features
Monitoring	Current, Power, Voltage
Power
Nominal input voltage	208-230 V
AC input frequency	50 - 60 Hz
Maximum current	15 A
Nominal output voltage	208-230 V
Load capacity	2300 VA
Maximum input current per phase	15 A
Maximum total current draw per phase	10 A
Maximum power	2300 W
Certificates
Compliance certificates	RoHS
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Width	444 mm
Depth	102 mm
Height	44 mm
Poids	1.73 kg
Packaging data
Package weight	2.91 kg
Package width	470 mm
Package depth	337 mm
Package height	64 mm
