StarTech.com 1-Port 10Gbps PoE++ Injector, 60W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged Inline Power Over Ethernet, TAA

Name: StarTech.com 1-Port 10Gbps PoE++ Injector, 60W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged Inline Power Over Ethernet, TAA
Brand: StarTech.com
SKU: AF31XC-POE-INJECTOR
Price: 136.31 CAD
Availability: InStock

SKU: AF31XC-POE-INJECTOR

$136.31 CADEn stock — 29

Disponibilité stable29 unités dans nos entrepôts

Demander une soumission

Nous acceptonsVISAAMEX PayG PayLink

Disponibilité en entrepôt

Toronto29

Retours sous 14 jours — articles non ouverts dans leur emballage d'origine

Livraison: Livraison gratuite pour les commandes de 700 $ CAD ou plus; en dessous, un tarif fixe de 15 $ CAD partout au Canada. Vendu au Canada par NetraHub, Mississauga (Ontario). Prix en dollars canadiens.

Revendeur ou installateur? Demandez un compte entreprise.

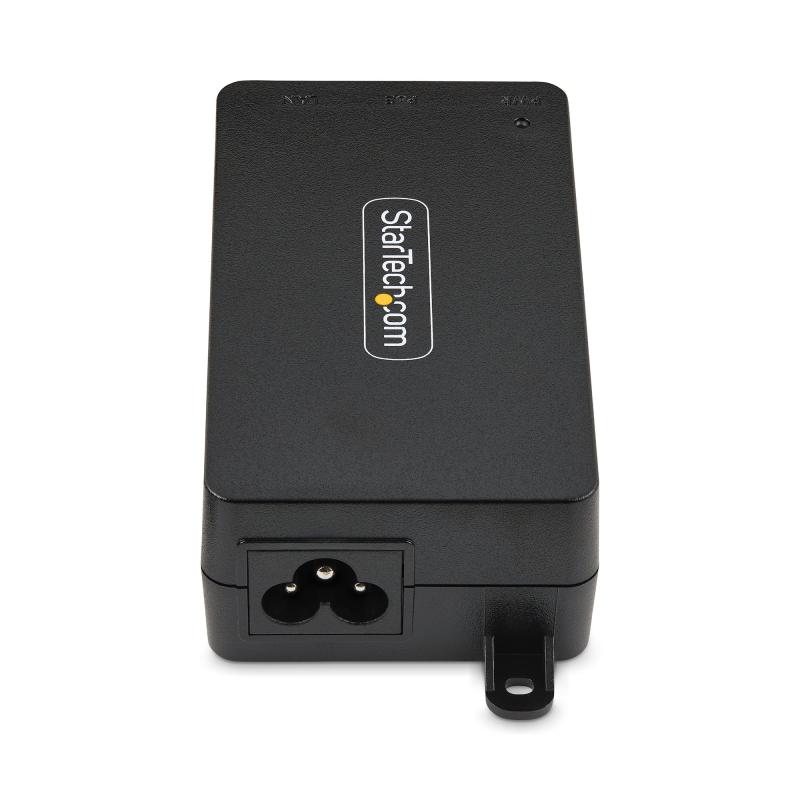

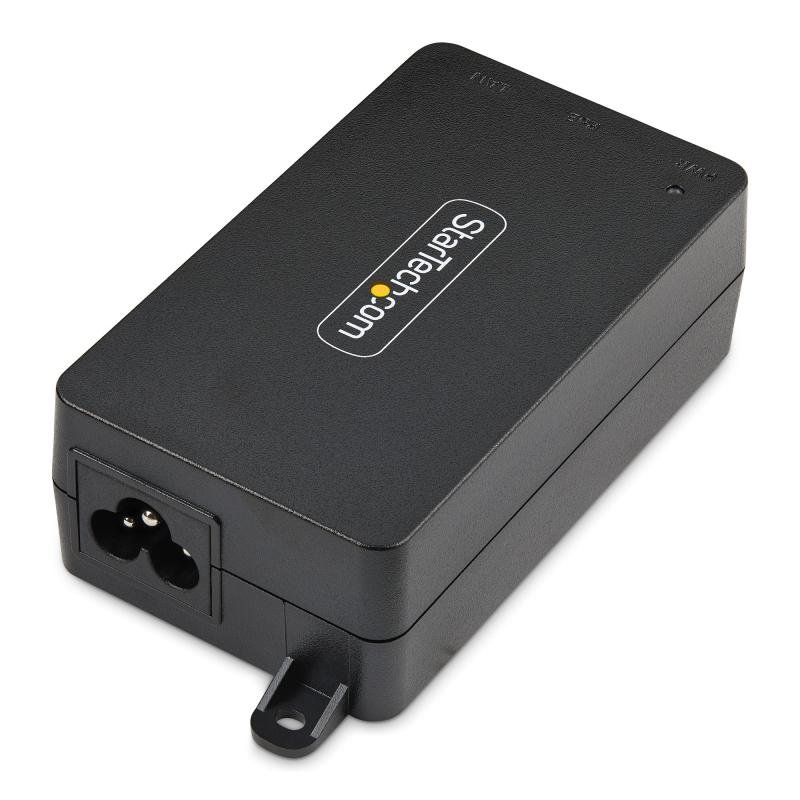

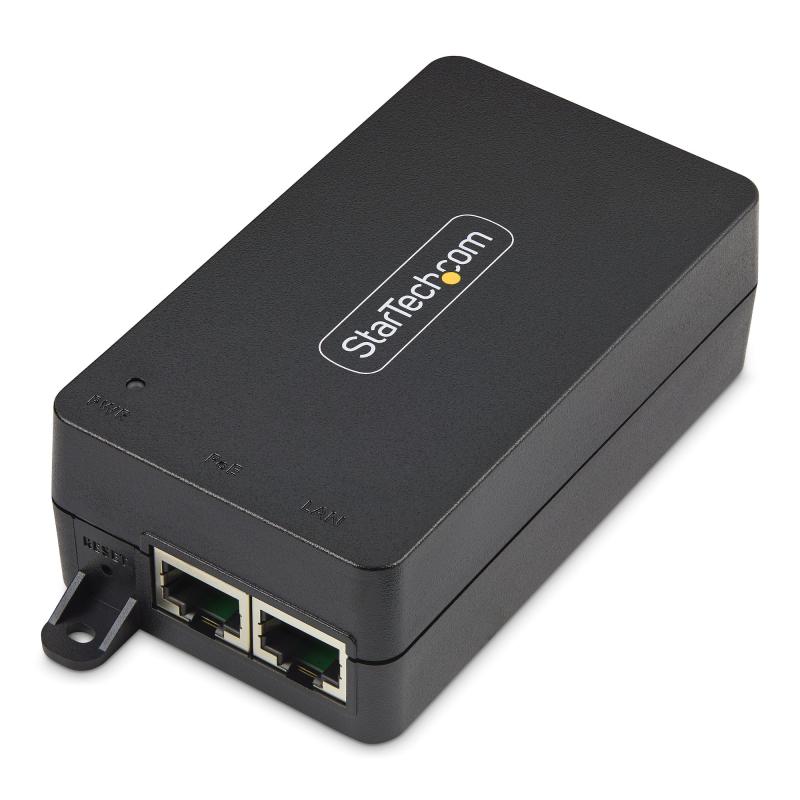

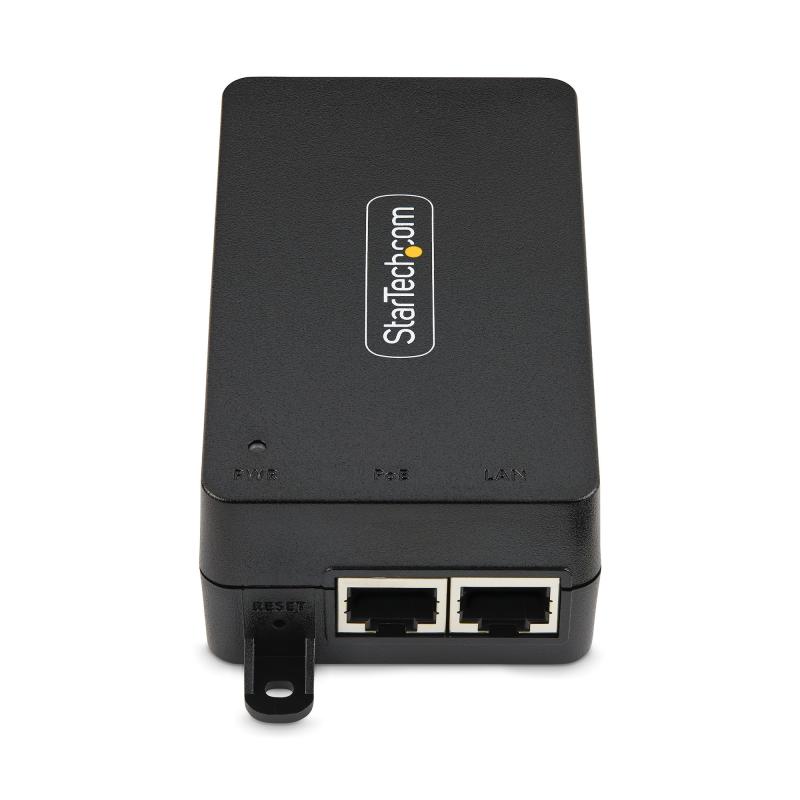

Supply power and data to a PoE device over standard Ethernet cabling

This 1-Port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).

Versatile PoE Injector

Single port PoE+ injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 60W output (54V, 1.11A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

Général
Marque	StarTech.com
UGS	AF31XC-POE-INJECTOR
Numéro de pièce du fabricant	AF31XC-POE-INJECTOR
GTIN	0065030905794
Poids	0.2 kg
Catégories	Commutateurs KVM
Network
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Cabling technology	1000/10000
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X	Yes
Web-based management	No
Chipset	SkyWorks - Si3471A-A01
Features
Product colour	Black
Housing material	Plastic
Wall mountable	Yes
Maximum operating distance	100 m
LED indicators	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Power protection features	Over current, Over voltage, Short circuit
Auto-negotiation	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power
AC adapter input voltage	100 - 240 V
Input current	1.5 A
AC adapter output voltage	54 V
Output current	1.11 A
Total Power over Ethernet (PoE) budget	60 W
Suitable for use in country/location	United States
Certificates
Compliance certificates	Trade Agreements Act (TAA), UL
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-30 - 80 °C
Weight & dimensions
Width	58 mm
Depth	122 mm
Height	34 mm
Poids	198 g
Packaging content
Power cord included	Yes
Quick installation guide	Yes
Packaging data
Package width	210 mm
Package depth	124 mm
Package height	51 mm
Package weight	500 g
Logistics data
Master (outer) case width	522 mm
Master (outer) case length	286 mm
Master (outer) case height	455 mm
Products per master (outer) case	40 pc(s)
