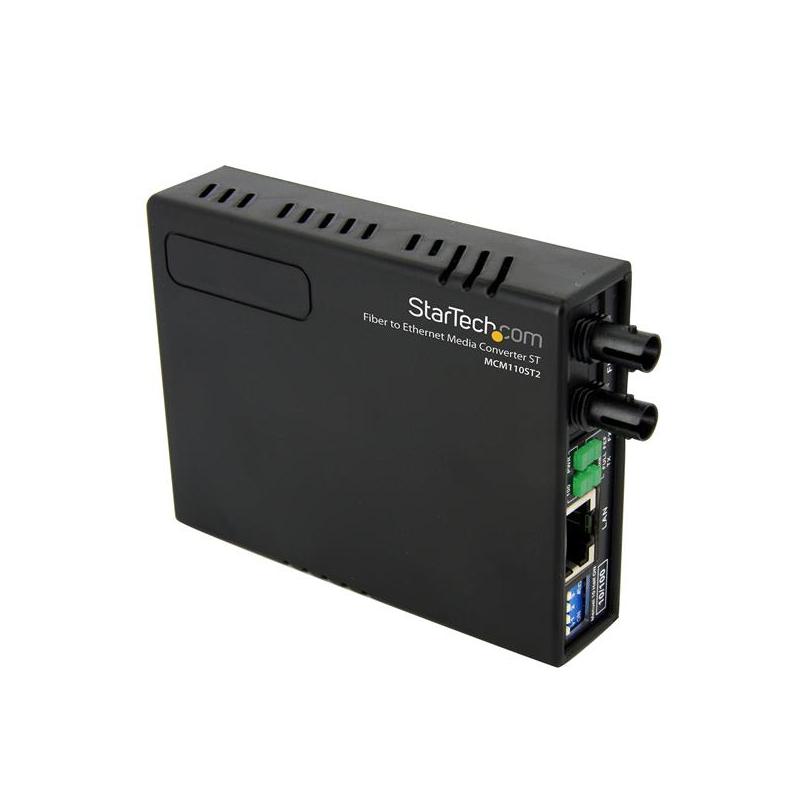

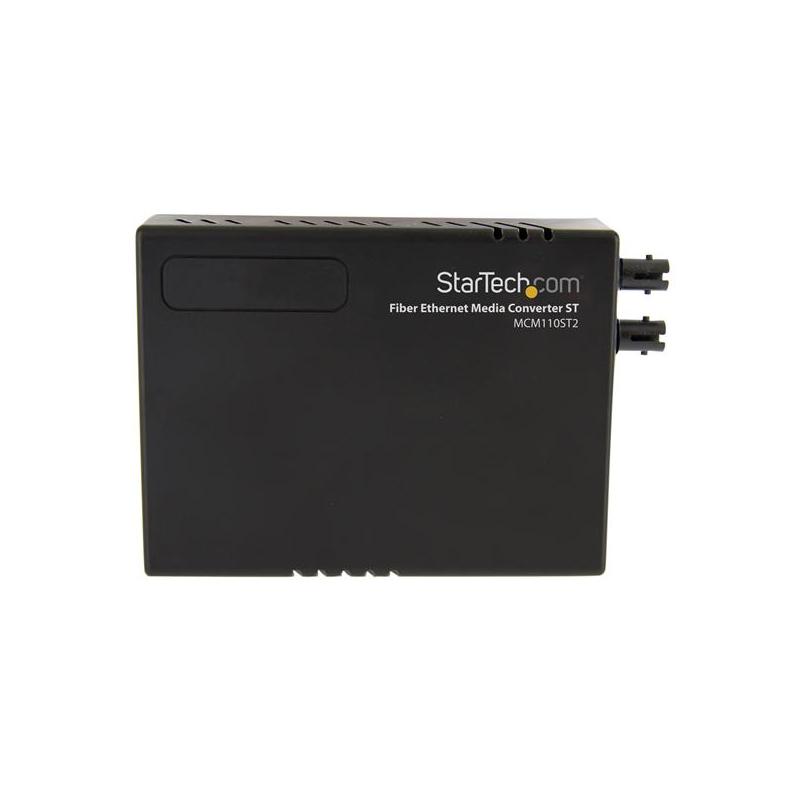

StarTech.com Multi-Mode (MM) ST Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to ST MM Fiber Media Converter, 1310nm, 2km - TAA

Name: StarTech.com Multi-Mode (MM) ST Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to ST MM Fiber Media Converter, 1310nm, 2km - TAA
Brand: StarTech.com
SKU: MCM110ST2
Price: 111.71 CAD
Availability: BackOrder

SKU: MCM110ST2

$111.71 CADEn rupture — commande différée — Expédié dès disponibilité

En rupture — commande différéeExpédié dès disponibilité

Appelez pour la disponibilité · 905-571-2877 Demander une soumission

Retours sous 14 jours — articles non ouverts dans leur emballage d'origine

Livraison: Livraison gratuite pour les commandes de 700 $ CAD ou plus; en dessous, un tarif fixe de 15 $ CAD partout au Canada. Vendu au Canada par NetraHub, Mississauga (Ontario). Prix en dollars canadiens.

Revendeur ou installateur? Demandez un compte entreprise.

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

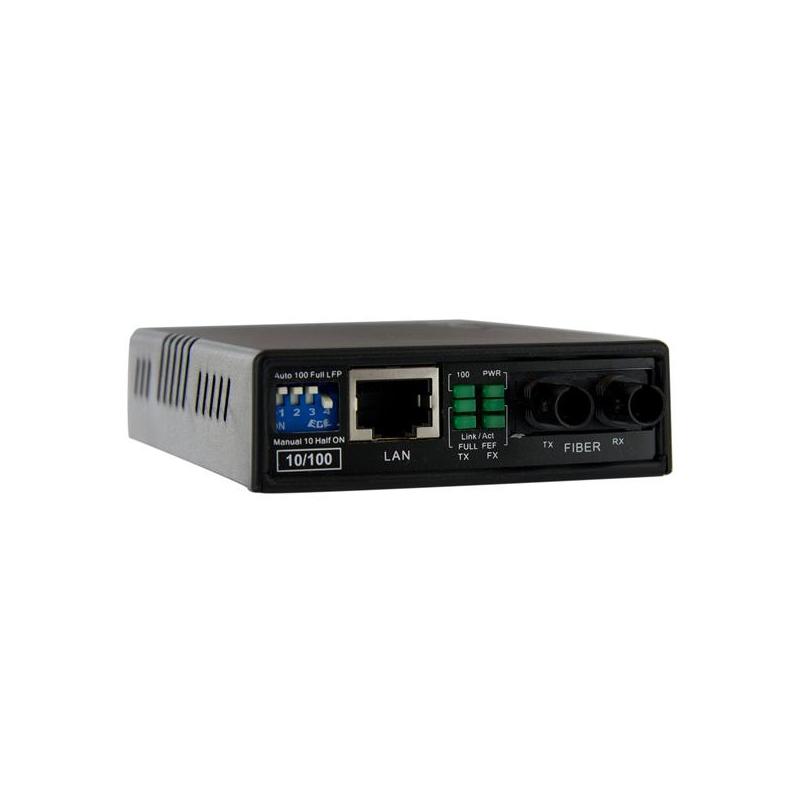

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Général
Marque	StarTech.com
UGS	MCM110ST2
Numéro de pièce du fabricant	MCM110ST2
GTIN	0065030835633
Poids	0.08 kg
Catégories	Émetteurs-récepteurs et convertisseurs de média
Network
Maximum data transfer rate	100 Mbit/s
Converter input interface	10Base-T, 100BASE-FX, 100Base-TX
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Data transfer rate	100 Mbit/s
Duplex system	Full, Half
Performance
Maximum transfer distance	2000 m
Wavelength	1310 nm
Wavelength-division multiplexing (WDM)	No
Sensitivity	-31 dBmW
Link budget	11 dB
Mean time between failures (MTBF)	65000 h
Features
Internal	No
LED indicators	Yes
Housing material	Plastic
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	ST
Power
Input voltage	100 - 240 V
Output voltage	12 V
Output current	0.2 A
Power consumption (typical)	2.4 W
Power over Ethernet (PoE)	No
Power plug type	Type M
Weight & dimensions
Width	75 mm
Depth	95 mm
Height	20 mm
Poids	82 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
AC adapter included	Yes
Manual	Yes
Packaging data
Package width	145 mm
Package depth	175 mm
Package height	61 mm
Package weight	273 g
Certificates
Compliance certificates	RoHS
Certification	CE, FCC, TAA, REACH
